Honda Fork Conversion Kits – 6 Series

$790.00 AUD

You asked, we delivered! Our long awaited newly updated Honda fork conversion kits

Suitable for the following Honda Models:

1. Honda CB Series K and F models from years 1969 to 1983 (e.g. Honda CB750K / F, Honda CB550, Honda CB900 etc.)

2. Honda CX Series models from years 1978 to 1983 (e.g. Honda CX500, CX650).

Simply let us know what set up you need by following selections below.

Note that your kit takes about 10 business days to process – We press in the stem, grease the bearings, and package it all according to your selection.

For fork models not listed, or additional spacer requirements for rotor or adapters, contact us directly using the contact page.

Refer to the Features, Inclusions and Fitment tabs below for additional information regarding fitment, application and compatibility.

In Stock

E.g. 1982 Honda CB750 F
E.g. 2006 Honda CBR 1000RR, or 2007 Suzuki GSXR 1000, or 2014 Yamaha R1 etc.
E.g. Standard - where clip-on bars must be used, or Riser - where Rizoma style tapered handlebars must be used
E.g. 50mm top diameter, and 53mm to 56mm bottom diameter (where the triple tree clamps the forks) - Please measure your forks.
Choose from 30mm or 40mm fork offset.
Optional - Choose speedometer bracket for commonly used motogadget gauges.
Product total
Options total
Grand total
- +
Honda Fork Conversion Kits - 6 Series 6

Fork conversions made easy!

Our custom designed plug and play installation to remove those old Honda forks and replace them with modern upside down forks for your custom Honda CB or CX series motorcycle.

This easy to install modification will instantly change the performance, look and feel of your custom Honda CB750 K, F, CX500, CB900 Cafe Racer, Scrambler, Tracker and so on.

The triple clamps are manufactured using aerospace grade 6061 T6 Aluminium for improved handling and performance. With this kit, you don’t only get style and functionality, but performance of the highest degree. *Note that our 7 Series kit uses even stronger material but with the same design providing another level in performance should you need it – simply head to its product page.

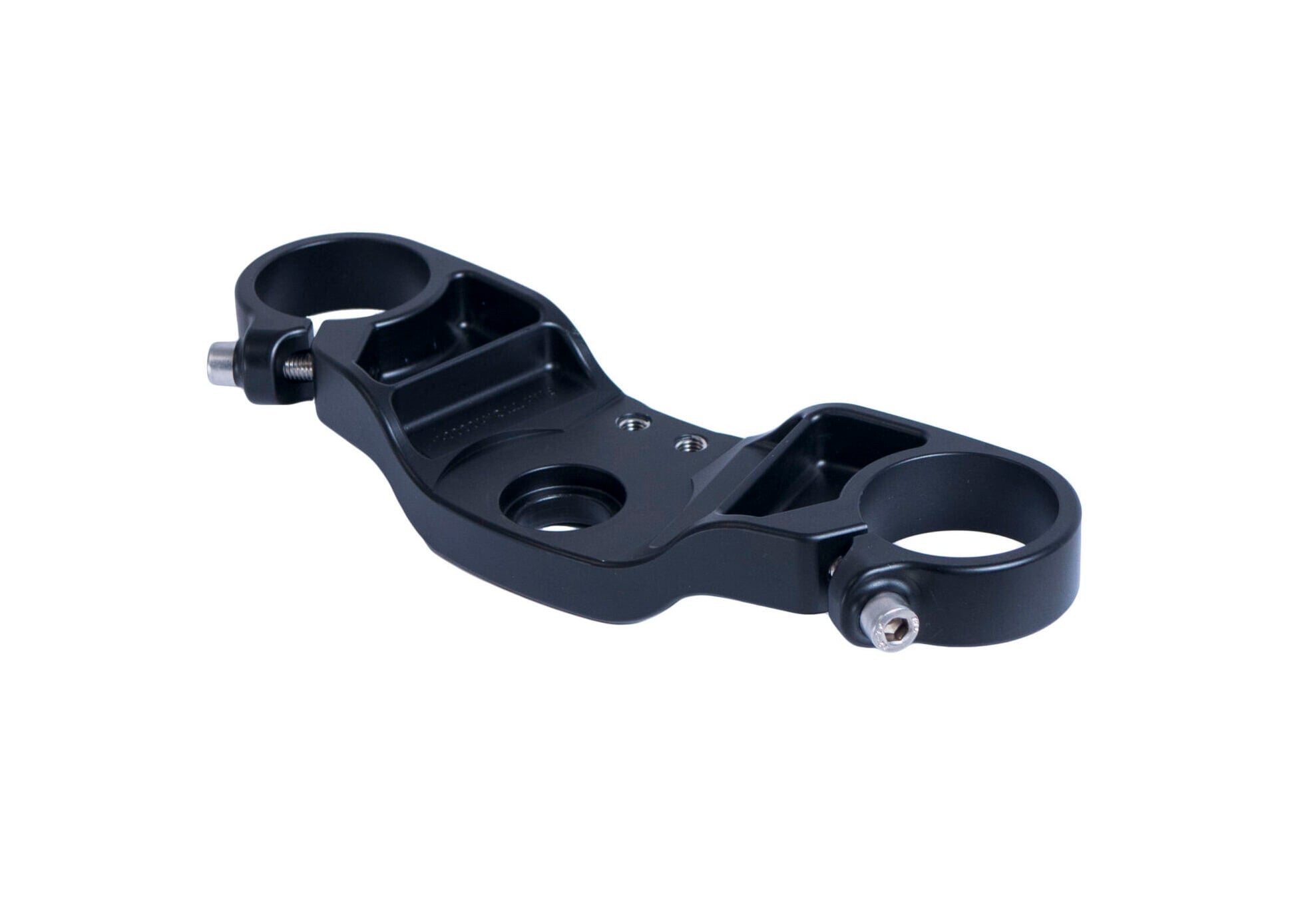

Helicoiled auxiliary attachment holes

All JAX Garage components are designed to not only look and feel good but also to be durable and practical. That’s why we’ve included helicoiled auxiliary mounting holes underneath the top triple clamp. Perfect for fitting aftermarket speedometers of your choice.

Or

If you’re intending to use motogadget motoscope pro, mini or tiny speedos, we have custom built bolt on brackets that will suit all of our top triples. Simply select them as additional extras.

Honda Fork Conversion Kits - 6 Series 7
Honda Fork Conversion Kits - 6 Series 6

Pre-pressed head stem and bottom bearing

Whilst we always recommend that our components are installed by a qualified mechanic, all the hard work has already been done. The kit ensures that the head stem and bottom bearing are pressed on, making the installation a breeze.

We’ve also added two helicoiled mounting holes either side, along with adjustable steering stoppers to suit the needs of your build.

What comes in the kit?

Honda Fork Conversion Kits - 6 Series 9
  • Bottom triple clamp with pressed-in head stem and bottom bearing.
  • Top triple clamp.
  • Top bearing.
  • 2x steering stoppers and 2x stainless steel bolts to suit.
  • 4x bottom triple clamp stainless steel bolts.
  • 2x top triple clamp stainless steel bolts.
  • 2x collets depending on your selection (53mm, 54mm, 55mm, 56mm)

What comes in the box?

This Honda Fork Conversion kit comes with the following:

  • Bottom triple clamp with pressed-in head stem and bottom bearing.
  • Top triple clamp.
  • Top bearing.
  • 2x steering stoppers and 2x stainless steel bolts to suit.
  • 4x bottom triple clamp stainless steel bolts.
  • 2x top triple clamp stainless steel bolts.
  • 2 x Collets to suit either 53mm, 54mm, 55mm or 56mm forks.

Material: 6061 T6 Aluminium



Product Fitment

Our Honda Fork Conversion Kit is compatible with Honda CB and CX series bikes (1970’s – 1980’s): Note that steering will differ between models. Adjust steering locks as per vehicle stopper.

Compatible forks

  • Any forks with a top clamping diameter of 50mm and bottom clamping diameter 53mm to 56mm i.e. CBR 929/954/1000RR, Yamaha R1, Suzuki GSXR 600/750/1000 , and many more.
  • Headstem offset is changed from the original of 50mm to 30mm or 40mm (depending on your option selected) – The fork offset is responsible for stability and side to side steering lock. Depending on your set-up and style you may choose 30mm (tucked in front, tighter steering angle, closer proximity to tank) or 40mm (increased front, increased steering angle, increased proximity to tank).
  • Selecting type of fork conversion – ‘Standard’ Indicates that clip-on handlebars must be used, ‘Riser’ indicates that a tapered handlebar with 28.5mm clamping diameter is to be used – Works perfectly with Rizoma tapered handlebars.
  • Choose any extras, such as a motoscope pro, mini, or tiny mount if you intend on on running a sleek new speedo with your new front end. The motoscope speedo is sold separately – be sure to check out our motogadget range.

*CBR models from 2000 to 2007 are plug and play, in that it allows the CBR wheel, rotors and axle to be used without the need of spacers. Suzuki GSXR, Yamaha R1 and other forks are also compatible with this kit. However, brake rotor spacers and axle spacers may be required if using the donor front wheel. Contact us if custom rotor adapters and axle spacers are required.

**Ohlins fork models may fit, however, lengths and axle spacing needs to be identical to the above listed models.

Disclaimer

Modifying vehicles is a specialist task and requires the knowledge and experience of competent individuals to be conducted safely, particularly where vehicle performance may change from the original specification. There is an element of risk associated with any modification and it is up to you to ensure these risks are minimised and taken into account. Further, some components may not be suitable for installation as a result rules and regulations. It is your responsibility to ensure that all legal requirements are met, relevant to your country and/or jurisdiction. JAX Garage takes no responsibility for any damage or injury as a result of any component or vehicle modification.

Additional information

Weight 2.95 kg
Dimensions 38 × 34 × 12 cm
Additional Information

Material: 6061 T6 Aluminium

This kit comes with the following:
– Bottom triple clamp with pressed-in head stem and bottom bearing.
– Top triple clamp.
– Top bearing.
– 2x steering stoppers and 2x stainless steel bolts to suit.
– 4x bottom triple clamp stainless steel bolts.
– 2x top triple clamp stainless steel bolts.

Compatible with all 1979-1982 CB750 F models: Note that steering will differ between models. Adjust steering locks as per vehicle stopper.

Compatible forks:
– Any forks with a top clamp diameter of 50mm and bottom 54mm i.e. CBR 929 RR (2000-2001), CBR 954 RR (2002 -2003), CBR 1000RR (2004-2007).
– Other CBR or Ohlin’s fork models may fit, however, lengths and axle spacing needs to be identical to the above listed models.
– Note the headstem offset is changed from the original of 50mm to 30mm (CBR offset).

Disclaimer:
Modifying vehicles is a specialist task and requires the knowledge and experience of competent individuals to be conducted safely, particularly where vehicle performance may change from the original specification. There is an element of risk associated with any modification and it is up to you to ensure these risks are minimised and taken into account. Further, some components may not be suitable for installation as a result rules and regulations. It is your responsibility to ensure that all legal requirements are met, relevant to your country and/or jurisdiction. JAX Garage takes no responsibility for any damage or injury as a result of any component or vehicle modification.

Brand

Jax Garage

Fitment

Honda CB500, Honda CB550, Honda CB750 F, Honda CB750 K, Honda CB900 F, Honda CX500, Honda CX650, Honda GL500, Honda GL650
