Motogadget mo.switch

$125.00$150.00 AUD

In Stock

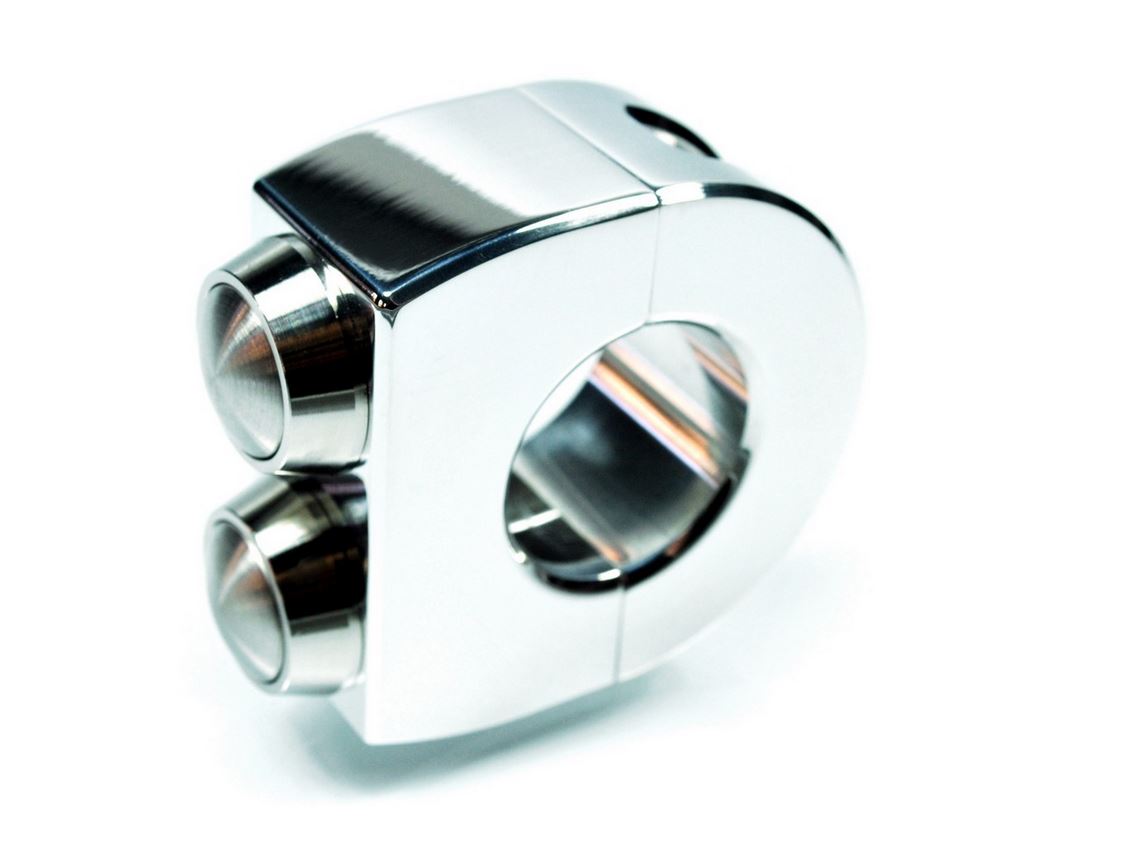

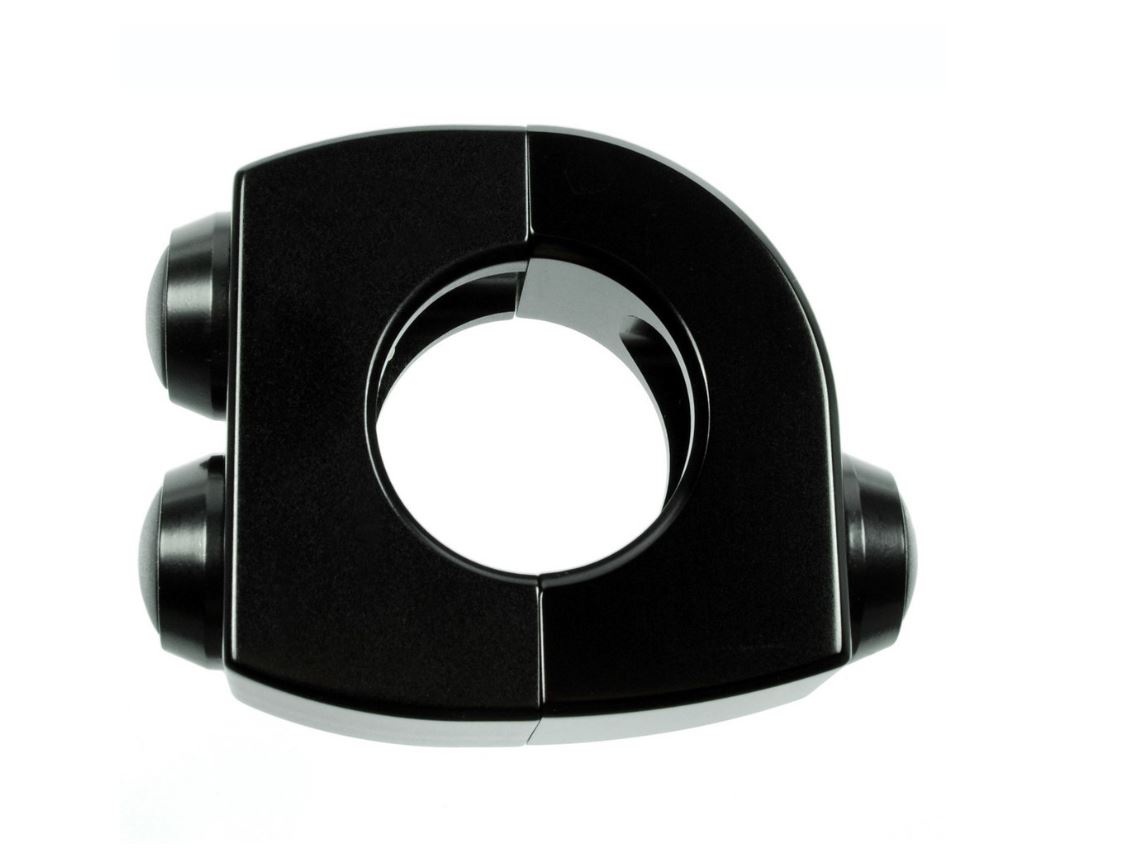

The mo.switch is a high quality universal push-button control for handle bars with 1 in. or 22 mm (7/8 in.) tube diameter in a plain and elegant design.

These finely CNC machined hand controls in combination with an electronic push-button control unit (not included in kit) are used to operate all electrical features, e.g. lights, turn signal, E-Starter, horn, etc.

Please select 2 button or 3 button options.

- +

Features

The casing is made from CNC machined billet aluminium and available in mirror polished or reflective black finished surface respectively. The compact design casing permits mounting two or more units on one handle bar.

Each unit is equipped with two or three push-buttons in black or stainless steel. Different looks matching or contrasting the casing can be combined freely. Two flush built-in M5 stainless steel mounting screws (only one screw on the three-button version) ensure secure and stable clamping of the push-button control to all handle bars.

The push-buttons are of high quality, very robust design and vibration- and spraywater-proof (IP65). The adequate size and ergonomic pressure point (easy, mechanical detent) provide for a definite actuation sensing – even when operated with gloves. This feedback allows shifting without the need to check the operation.

Each push-button is equipped with two terminals for an easy optional circuit layout with only one or two cables. The internal ground terminal is already provided for the ‘one cable layout’. Therefore, the routing of the cable inside the handle bar can be performed easily.

The push-buttons are available separately and can be replaced if damaged. The mo.switch is of course compatible to all common push-button controls, e.g. the mo.unit blue/basic.

Product Fitment

Specifications and features
Inner diameter 22 mm or 1 Inch
Outer diameter 49 mm
Width 20.5 mm
Length of cable 200 mm

What comes in the box?

  • 1 x mo.switch
  • 2 x retaining stainless steel caphead bolts.

Additional Information & Disclaimer

Disclaimer

Modifying vehicles is a specialist task and requires the knowledge and experience of competent individuals to be conducted safely, particularly where vehicle performance may change from the original specification. There is an element of risk associated with any modification and it is up to you to ensure these risks are minimised and taken into account. Further, some components may not be suitable for installation as a result rules and regulations. It is your responsibility to ensure that all legal requirements are met, relevant to your country and/or jurisdiction. JAX Garage takes no responsibility for any damage or injury as a result of any component or vehicle modification.

Weight 0.20 kg
Dimensions 10 × 10 × 8 cm
Surface

Black Anodized, Polished

Handle Bar Diameter

22mm (7/8 inch), 25.4mm (1 inch)

Brand

Motogadget

Fitment

Universal

Surface Button

Black, Stainless Steel

Buttons Per Unit

2, 3
