BMW K100 / K75 Wheel – Brake Disc / Rotor Adapter Kit

This kit is designed to be installed with our 6 or 7 series fork conversion kits. It can also be installed with CBR or other triple trees that have 214mm fork centre to fork centre spacing. Note that this is regardless of whether the forks used are Honda, Suzuki, Yamaha or other, the spacing needs to be 214mm for the kit to work as intended.

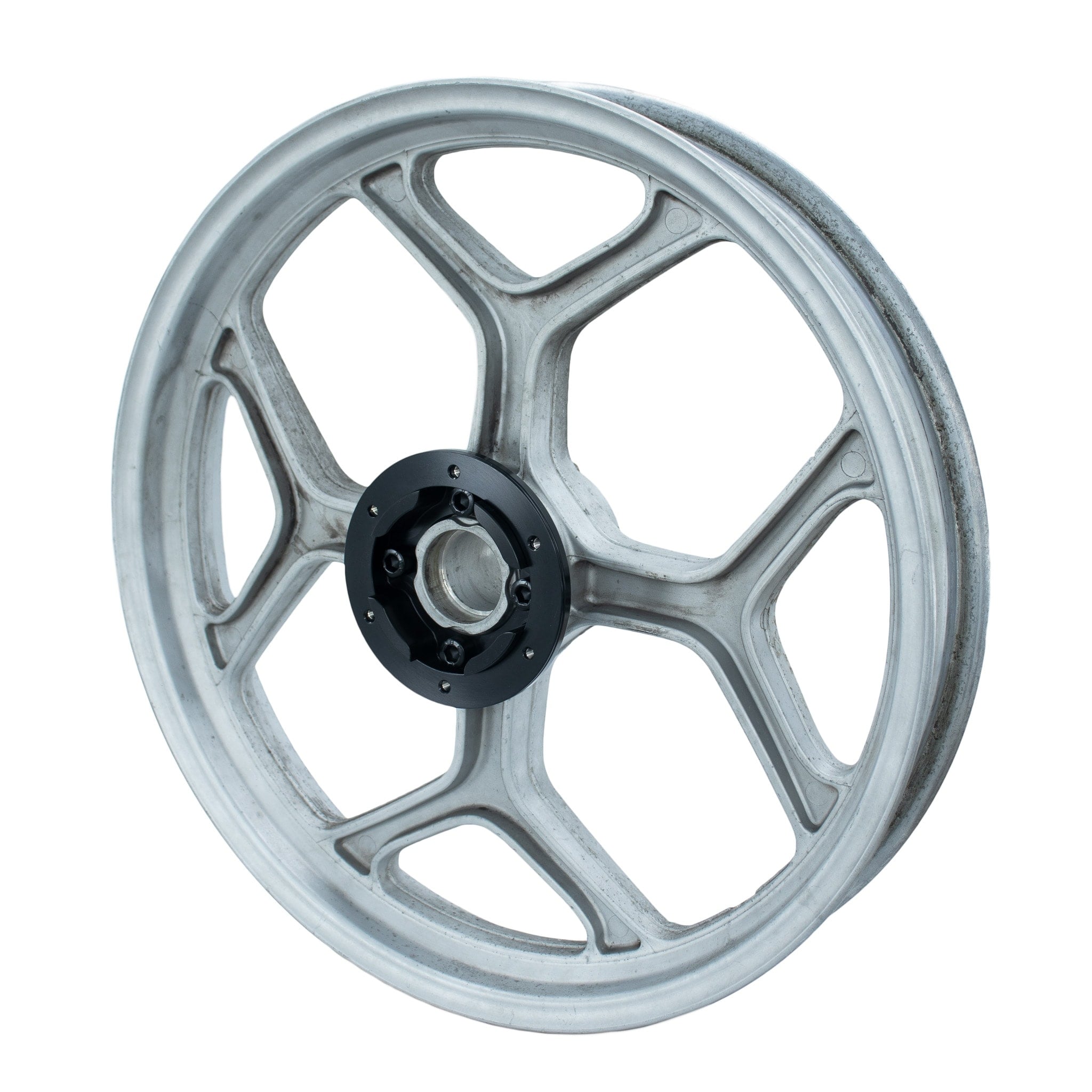

Compatible with all BMW K Series (1980’s – 1990’s) that utilise the original K series snowflake wheel (front and back). ** This kit will not work on later K models with a trispoke wheel.

It is also Compatible with all BMW R series wheels that are identical to that of the K series snowflake profile and hub typically manufactured in the 1980’s.

This kit is compatible with the following forks as a minimum:

• Honda CBR 929 RR (2000-2001),
• Honda CBR 954 RR (2002 -2003),
• Honda CBR 1000RR (2004-2007).
• Honda CBR 1000RR (2008-2011).
• Yamaha R1 (YZF-R1) (2004 – 2014).
• Suzuki GSXR – 600/750 – (2005-2014)
• Suzuki GSXR – 1000 – (2005-2014)

Brake Disc / Rotor Requirements:

• This kit is only compatible with Honda CBR 929 RR , 954 RR or 1000 RR brake discs/ rotors between 2000 – 2007 or equivalent aftermarket options. This requirement is applicable if you install Honda, Yamaha or Suzuki forks to your build. The Honda CBR brake discs / rotors specified above must be used or the kit will not work. We offer the adapter kit, and also offer equivalent brake discs / rotor sizes of 310mm, 320mm and 330mm. If you choose a Yamaha or Suzuki option kit you need to determine what diameter rotors you require (310, 320, or 330mm).

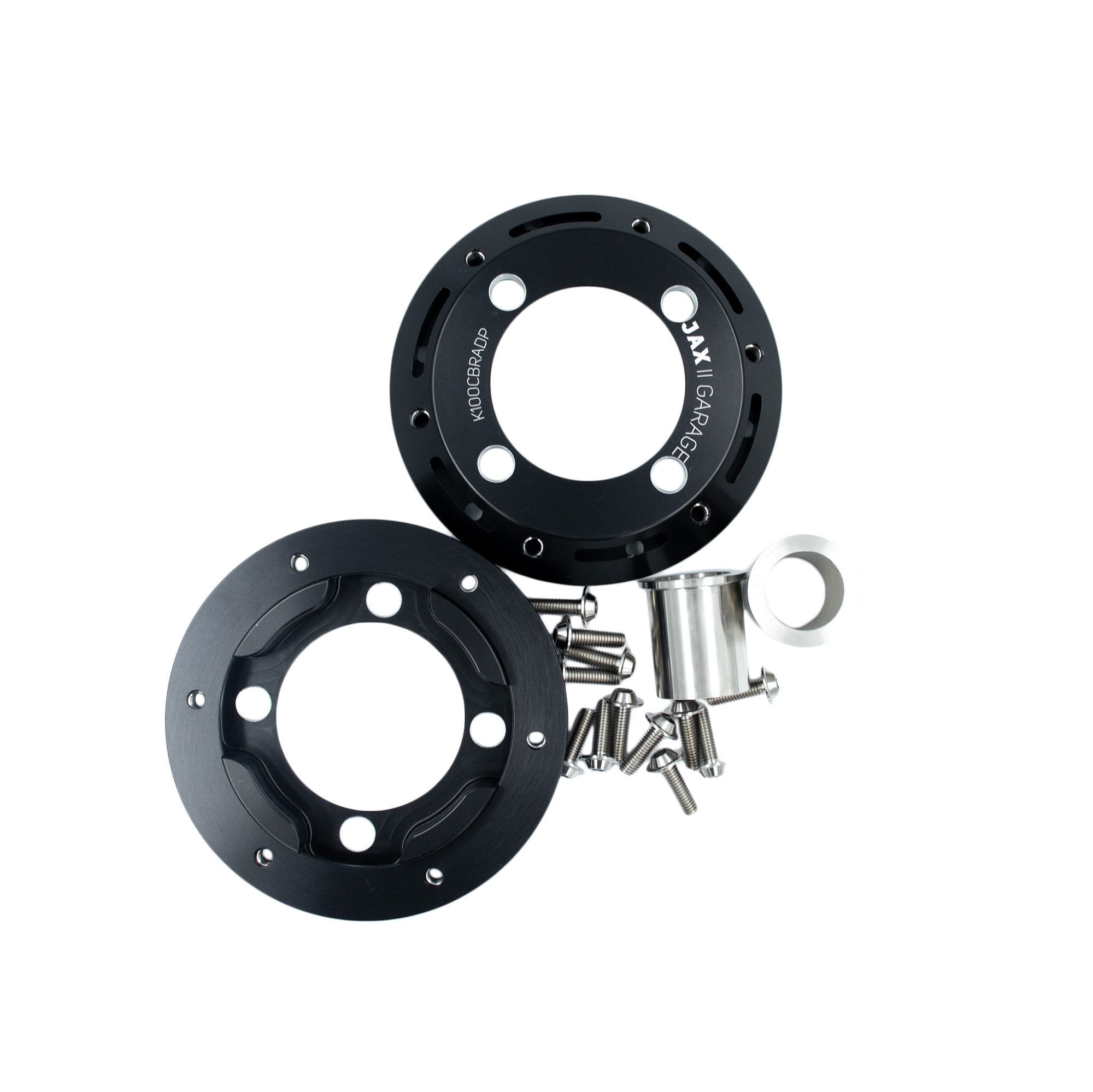

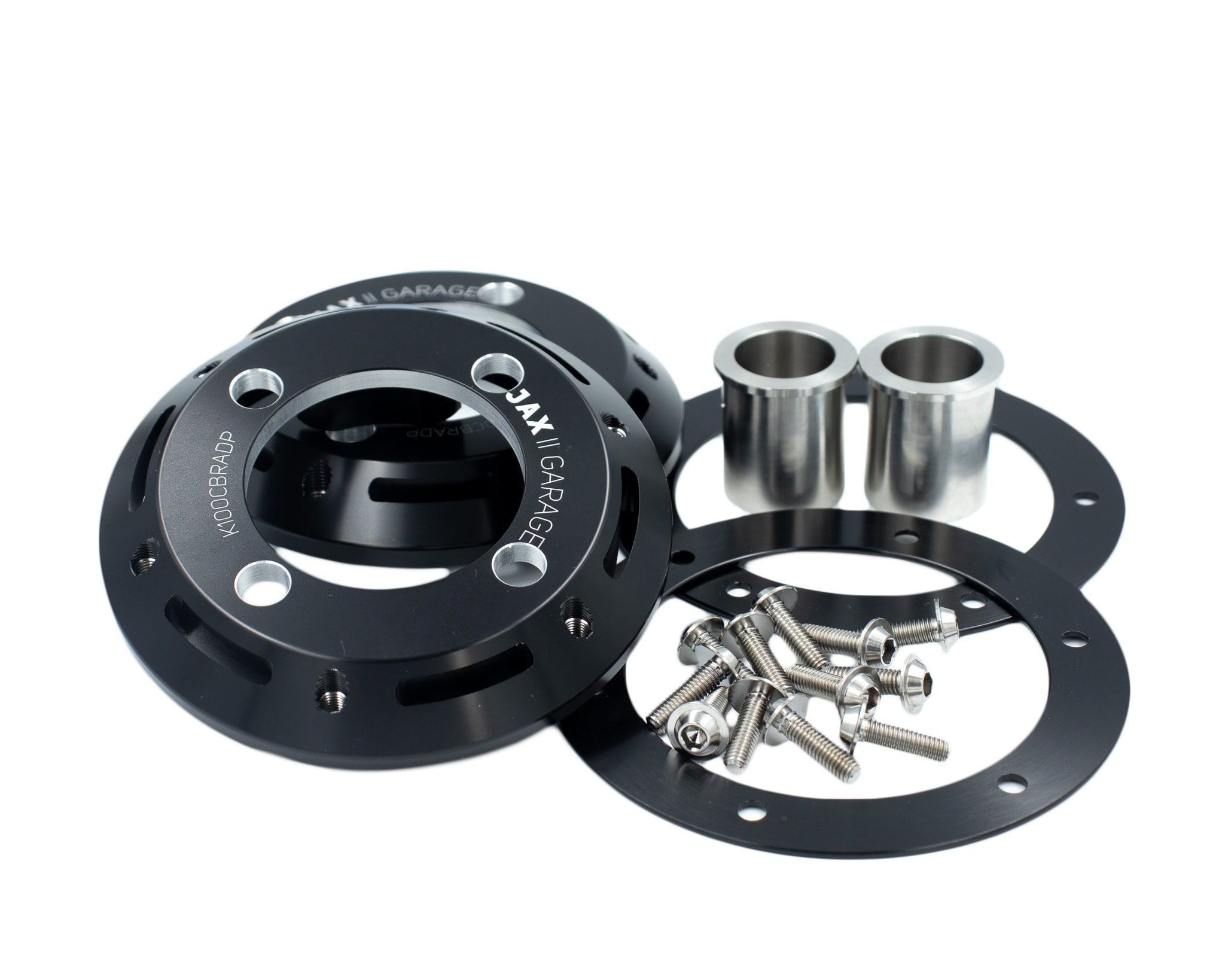

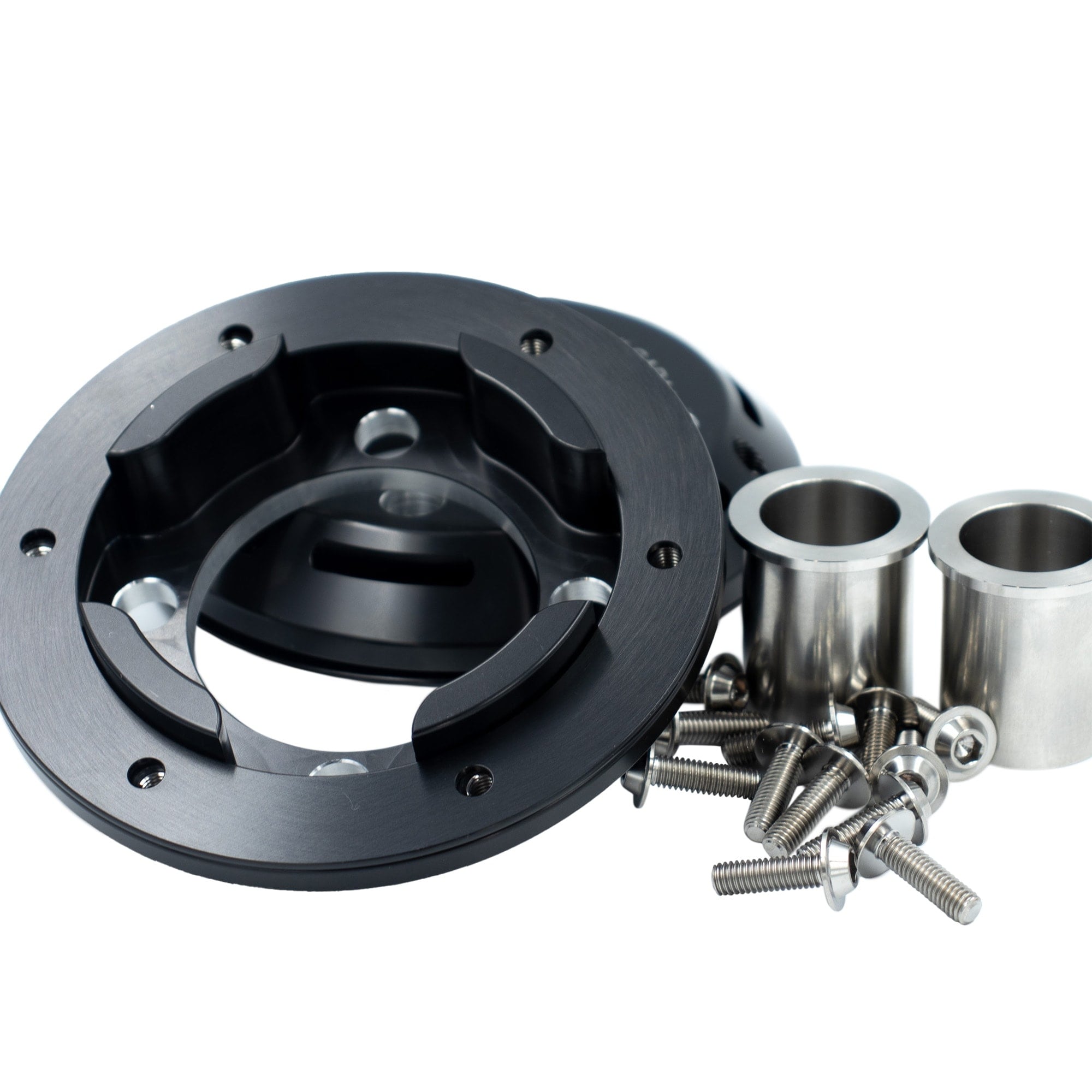

This kit comes with the following:

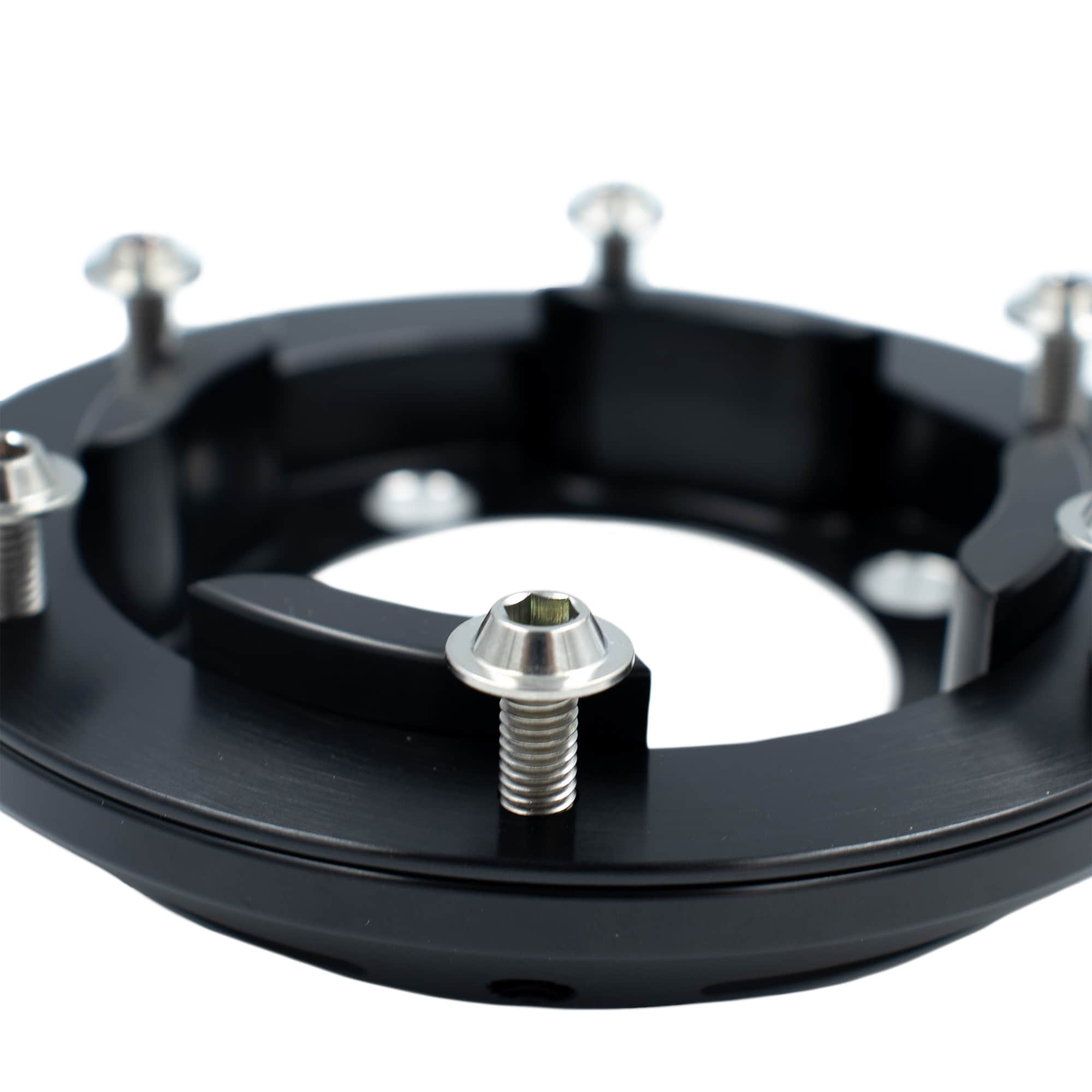

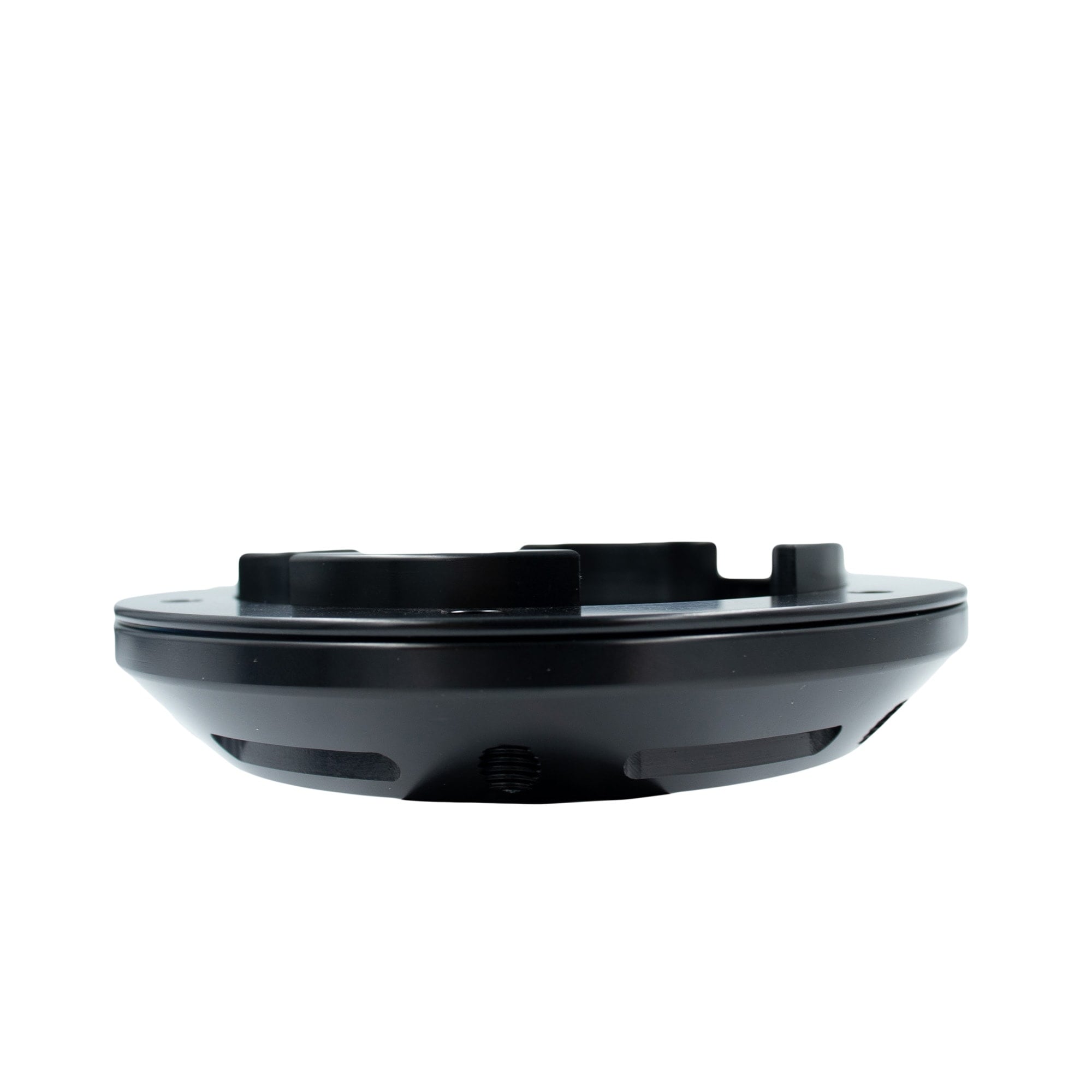

• 6061 T6 Aluminium Rotor Adapters x2.
• Rotor Spacers – Depending on your selected kit (e.g. CBR – Yamaha – Suzuki).

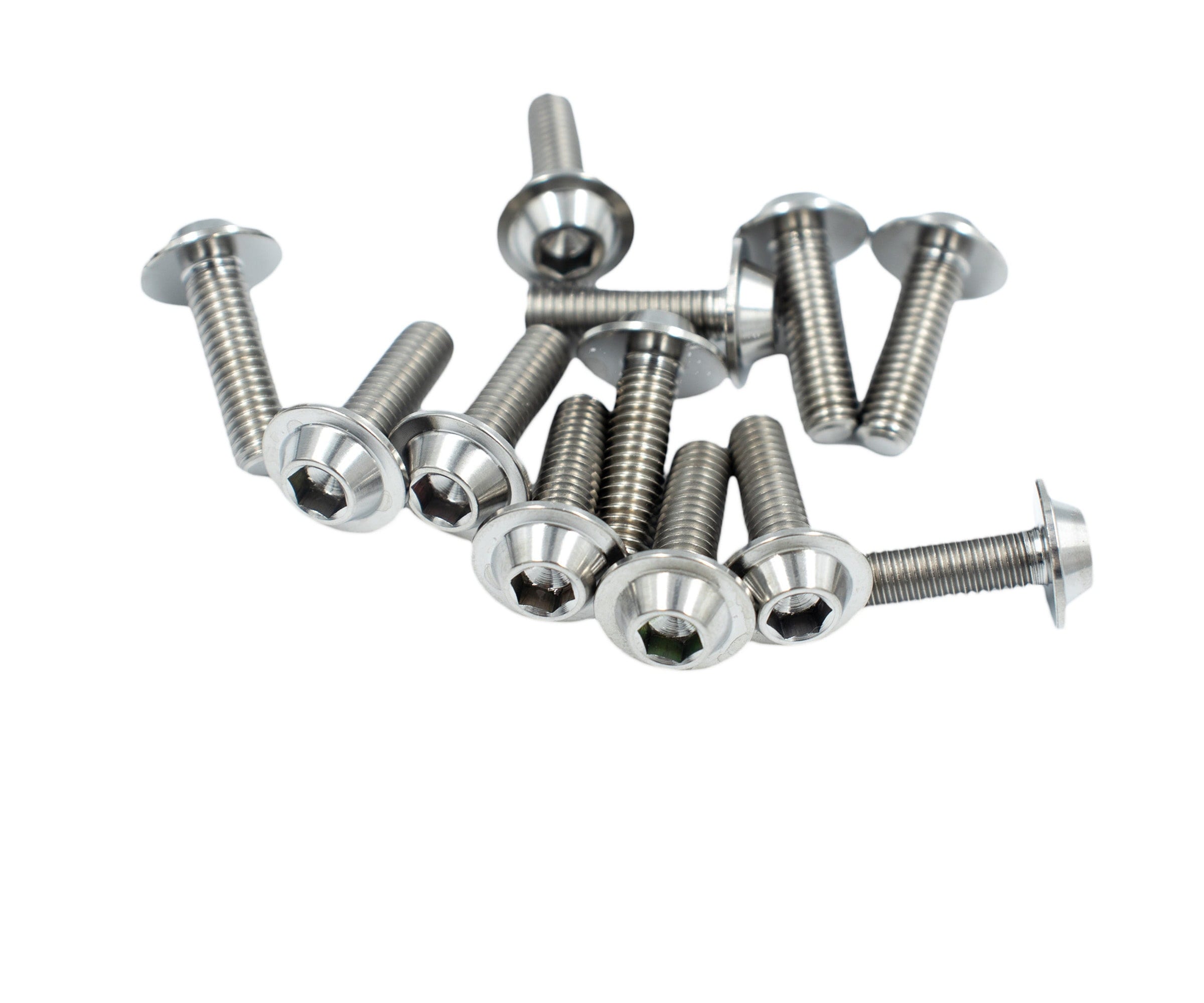

• 12 x Titanium flanged cap head bolts (M6 x 1.0mm)
• Axle Spacers – Depending on you selected kit (e.g. CBR – Yamaha – Suzuki).

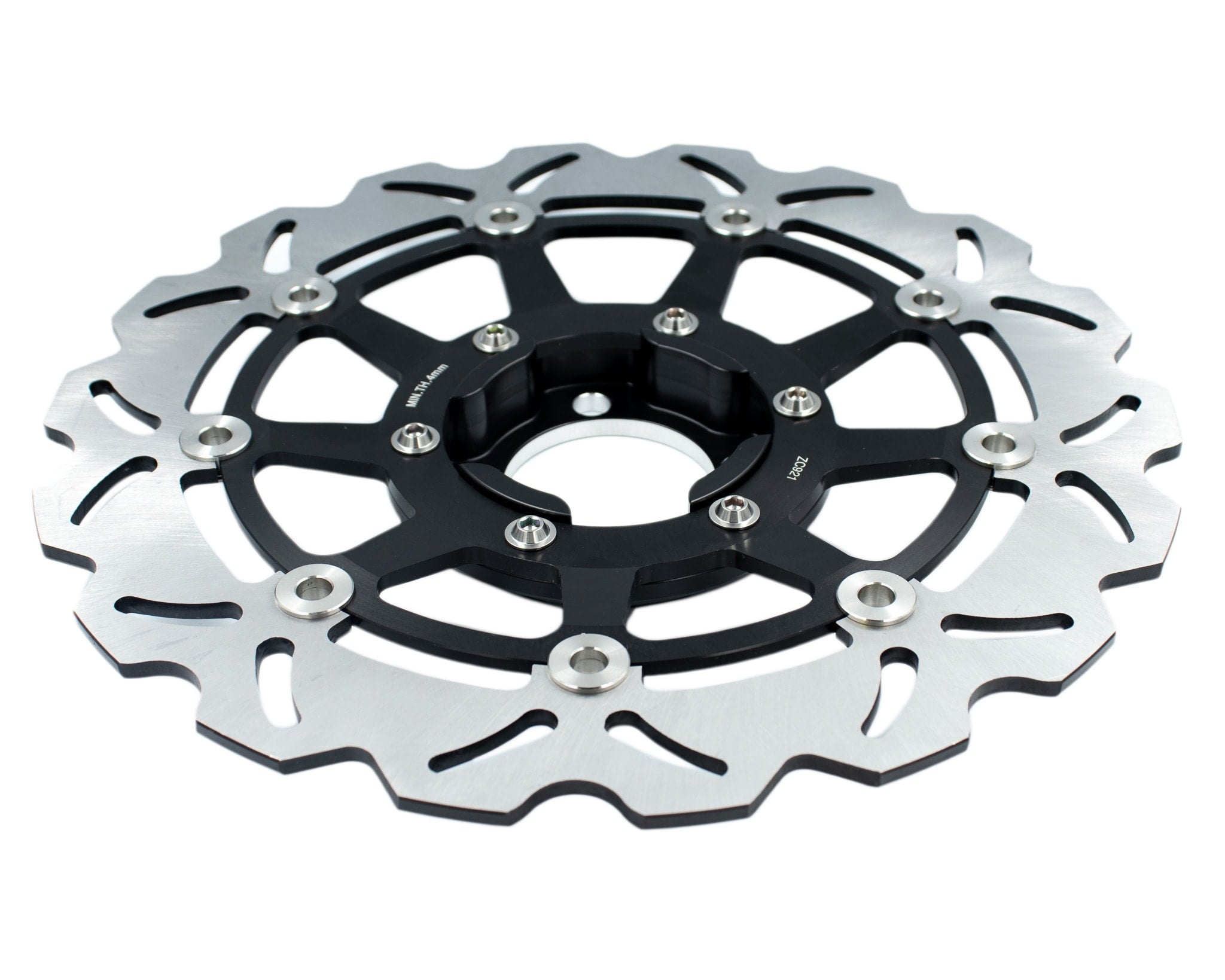

• S3 Performance Brake Discs to match (310mm, 320mm or 330mm)  – If option is selected

Material: 6061 T6 Aluminium

Disclaimer

Modifying vehicles is a specialist task and requires the knowledge and experience of competent individuals to be conducted safely, particularly where vehicle performance may change from the original specification. There is an element of risk associated with any modification and it is up to you to ensure these risks are minimised and taken into account. Further, some components may not be suitable for installation as a result rules and regulations. It is your responsibility to ensure that all legal requirements are met, relevant to your country and/or jurisdiction. JAX Garage takes no responsibility for any damage or injury as a result of any component or vehicle modification.
