Motogadget mo.switch basic
Price range: $121.50 through $144.00 AUD
In Stock
The mo.switch basic is a universal, high-quality push-button control for handlebars with 1 inch or 22 mm (7/8 inch) tube diameter in a simple, elegant design. In combination with an electronic push-button control box (not included), these CNC-made push-buttons can switch all electrical units such as lights, indicators, electric starters, horn and much more.
Please select 2 button or 3 button options.
Features

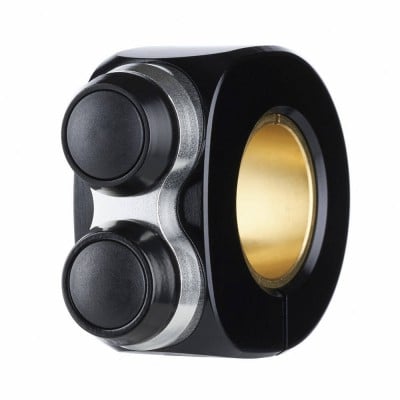

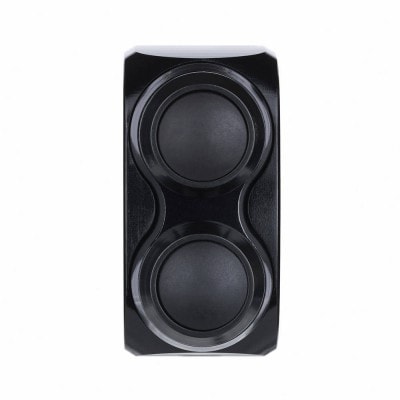

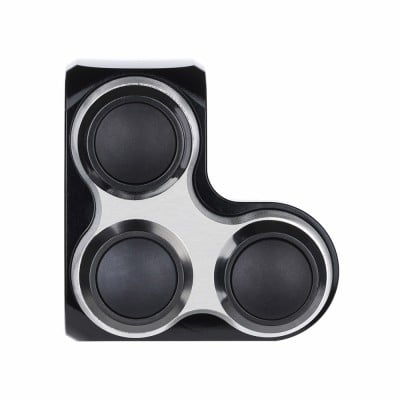

CNC-milled from billet aluminium the housing is anodised in glossy black. Optionally, the button holder (inlay) is also available with a silver anodized color. The compact housing is equipped with either two or three push buttons. All buttons are always in direction to the driver.
The two or three buttons per unit are always black. A hidden M4 stainless steel mounting screw clamps the housing securely to each handlebar.
The individual buttons are of high quality, very robust and protected against vibrations and splash water (IP65).
Due to sufficient size and ergonomic pressure point (light, mechanical detent), they allow a safe operation – even when operating with a glove.
A single-wire or two-wire wiring is easily possible by two terminals per push-button. One terminal for ground is already provided internally for single-wire wiring. Cable routing in the handlebars is therefore easy.
In case of possible damage, the single push-buttons are available individually and can be replaced.
The mo.switch basic is of course compatible with all common push button controls such as the mo.unit blue/basic.
Product Fitment
Specifications and features
Inner diameter 22 mm or 1 Inch
Outer diameter 45 mm
Width 22 mm for 2 push button, and 42.5mm for 3 push button
What comes in the box?
- mo.switch basic billet housing
- 2 or 3 push-buttons per unit
- Manual
Additional Information & Disclaimer
Disclaimer
Modifying vehicles is a specialist task and requires the knowledge and experience of competent individuals to be conducted safely, particularly where vehicle performance may change from the original specification. There is an element of risk associated with any modification and it is up to you to ensure these risks are minimised and taken into account. Further, some components may not be suitable for installation as a result rules and regulations. It is your responsibility to ensure that all legal requirements are met, relevant to your country and/or jurisdiction. JAX Garage takes no responsibility for any damage or injury as a result of any component or vehicle modification.
| Weight | 0.20 kg |
|---|---|
| Dimensions | 10 × 10 × 8 cm |
| Brand | Motogadget |
| Fitment | Universal |
| Colour of Inlay | Black Anodized, Silver Anodized |
| Buttons Per unit | 2, 3 |
| Installation Side | Left, Right |
