BMW R-Series Top Triple (Motoscope Pro Edition)

$290.00 AUD

In Stock

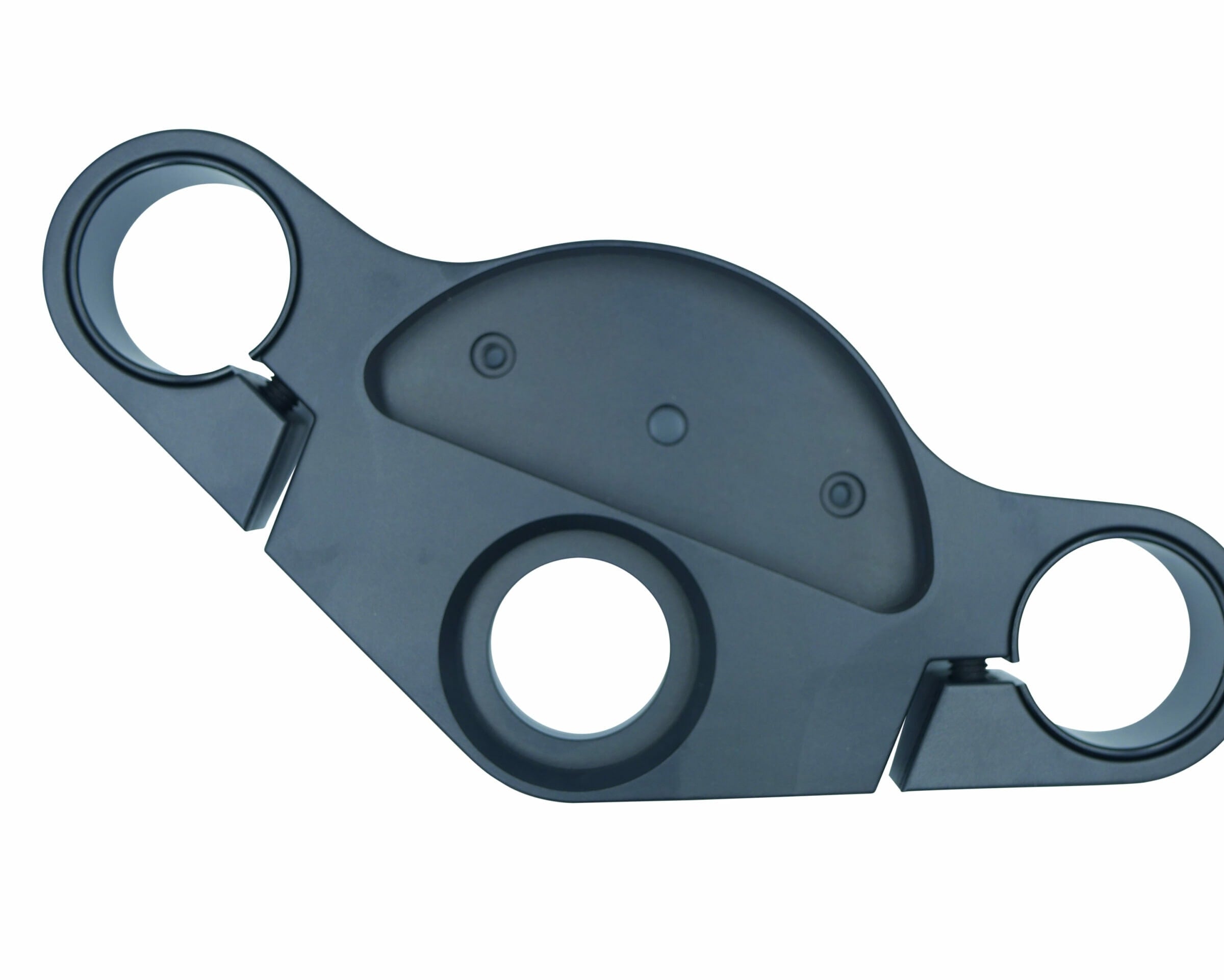

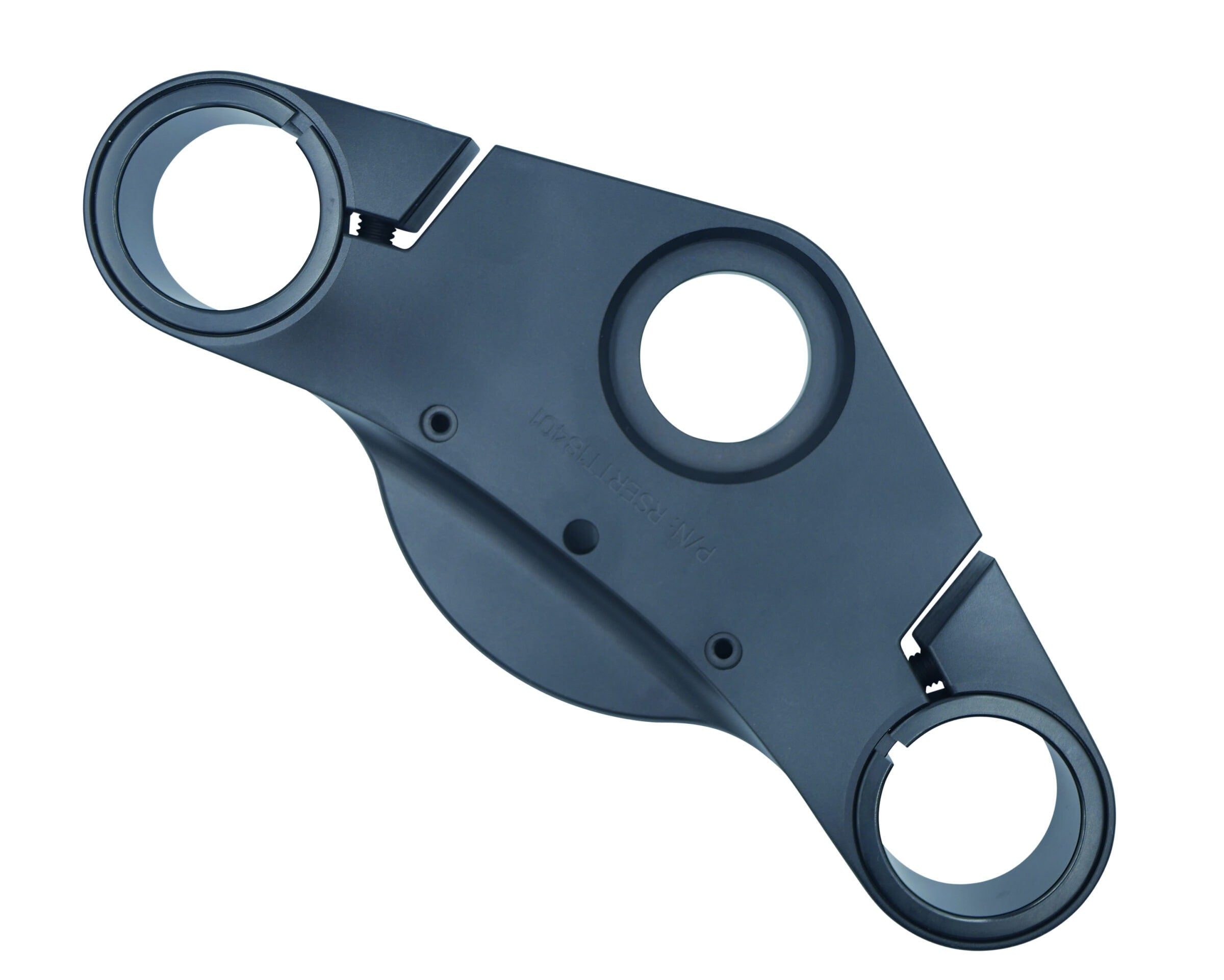

JAX Garage designed replacement top triple clamp for BMW R Series bikes (R100, R90, R80, R65 etc). The triple clamp provides a sleek new design with clean lines and improved rigidity when compared to the original. It is also a specific top triple that provides seamless integration to the ever so popular and high quality motogadget motoscope pro.

The custom triple clamp is manufactured using the highest quality 6061 T6 Aluminium. The OEM Offsets (184x38mm) are kept the same. To suit 36mm, 38mm and 38.5mm forks.

Refer to the specifications below for additional information regarding fitment, application and compatibility.

- +
SKU: RSERTT18401 Categories: ,


Integrated Motoscope Pro Cutout

All JAX Garage components are designed not only to look and feel good but also be durable and practical. That’s why our R Series Top Triple (motoscope pro edition) is designed specifically to seamlessly integrate the popular motoscope pro speedo into the triple clamp for the extra design factor.

With any custom bike the cockpit is likely to be the first thing to see from the riders position. Why not improve the look to match the custom feel and style of the rest of the ride? By having an integrated design, using the motogadget motoscope pro allows allow the counters of the bike to flow from one section to the next without being heavy on the eyes.

*motogadget motoscope pro sold separately

36mm, 38mm or 38.5mm

Using discrete collets you get the option to use the triple clamp for 36mm, 38mm, or 38.5mm forks to suit a wide variety of BMW R100, R90, R80 and R65 models across the years.

Product Fitment

Compatible with the following BMW R Series bikes:

  • R50/5 – R100 RS – from 1969 to 1984.
  • R80 G/S – from 1980 to 1987.
  • R80 ST – from 1982 to 1985.
  • R80 – R100 RT – from 1985 to 1996.

Please note: To ensure correct fitment we always ask that you double check year and model of your bike. The fork spacing should be 184mm from centre to centre. The stem to fork offset centre should be 38mm. The fork diameter is either 36mm, 38mm or 38.5mm. Please choose the appropriate fork diameter.

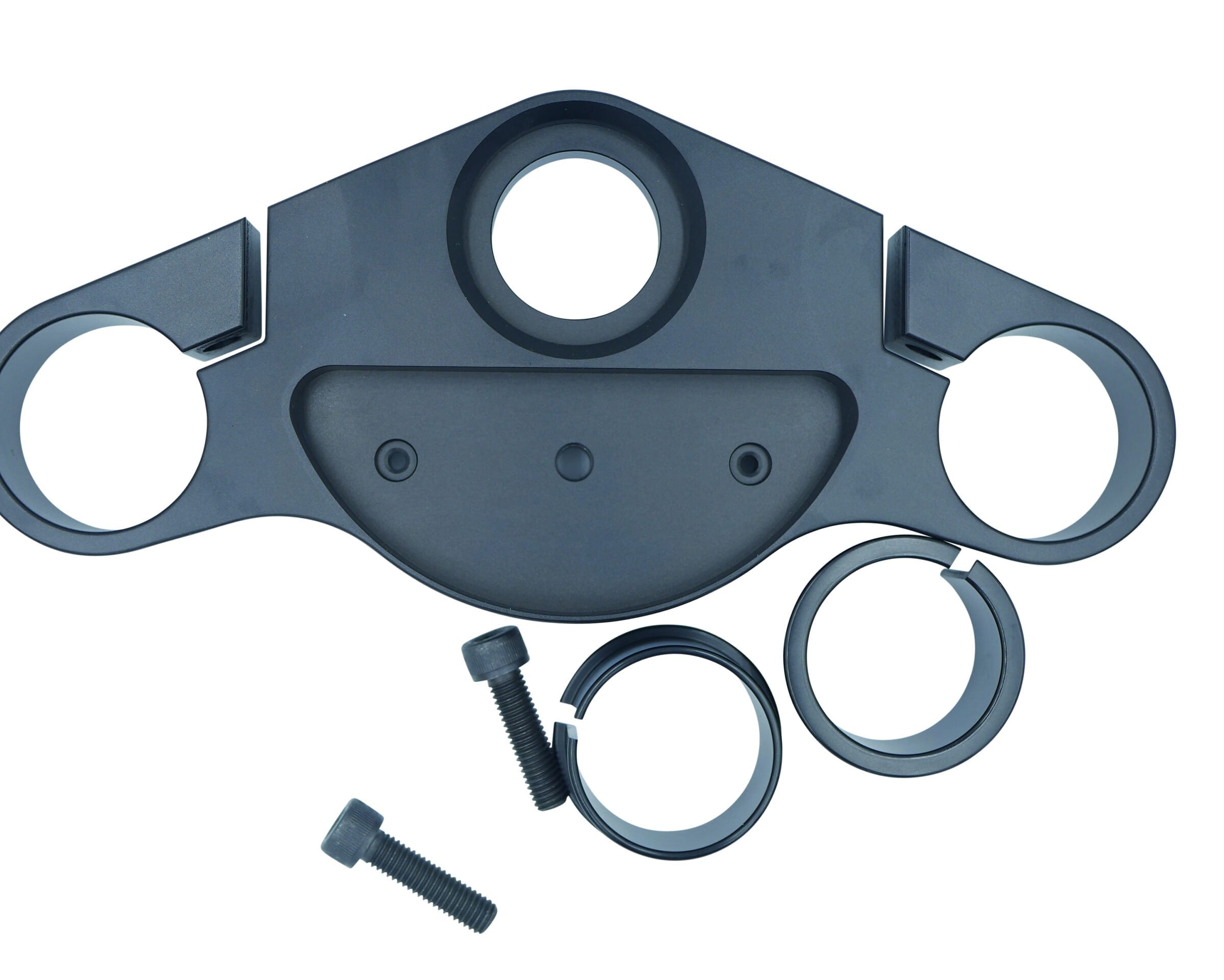

What comes in the box?

  • 1x JAX Garage BMW R Series replacement top triple with Motogadget motoscope Integration (*The motogadget motoscope pro has to be purchased separately).
  • 2x top triple pinch bolts to suit.
  • 2x Collets for 36, 38, or 38.5mm (please choose the appropriate fork diameter).


Additional Information & Disclaimer


Modifying vehicles is a specialist task and requires the knowledge and experience of competent individuals to be conducted safely, particularly where vehicle performance may change from the original specification. There is an element of risk associated with any modification and it is up to you to ensure these risks are minimised and taken into account. Further, some components may not be suitable for installation as a result rules and regulations. It is your responsibility to ensure that all legal requirements are met, relevant to your country and/or jurisdiction. JAX Garage takes no responsibility for any damage or injury as a result of any component or vehicle modification.

Weight 1 kg
Dimensions 42 × 12.5 × 10 cm

Jax Garage


BMW R100, BMW R65, BMW R80, BMW R90

Fork Size

36mm, 38mm, 38.5mm
