Motogadget Motoscope Pro – Digital Dashboard

$599.00 AUD

Low Stock
Ready for dispatch, limited availability

The motoscope pro is the most recent generation of motogadget’s digital dashboard series.

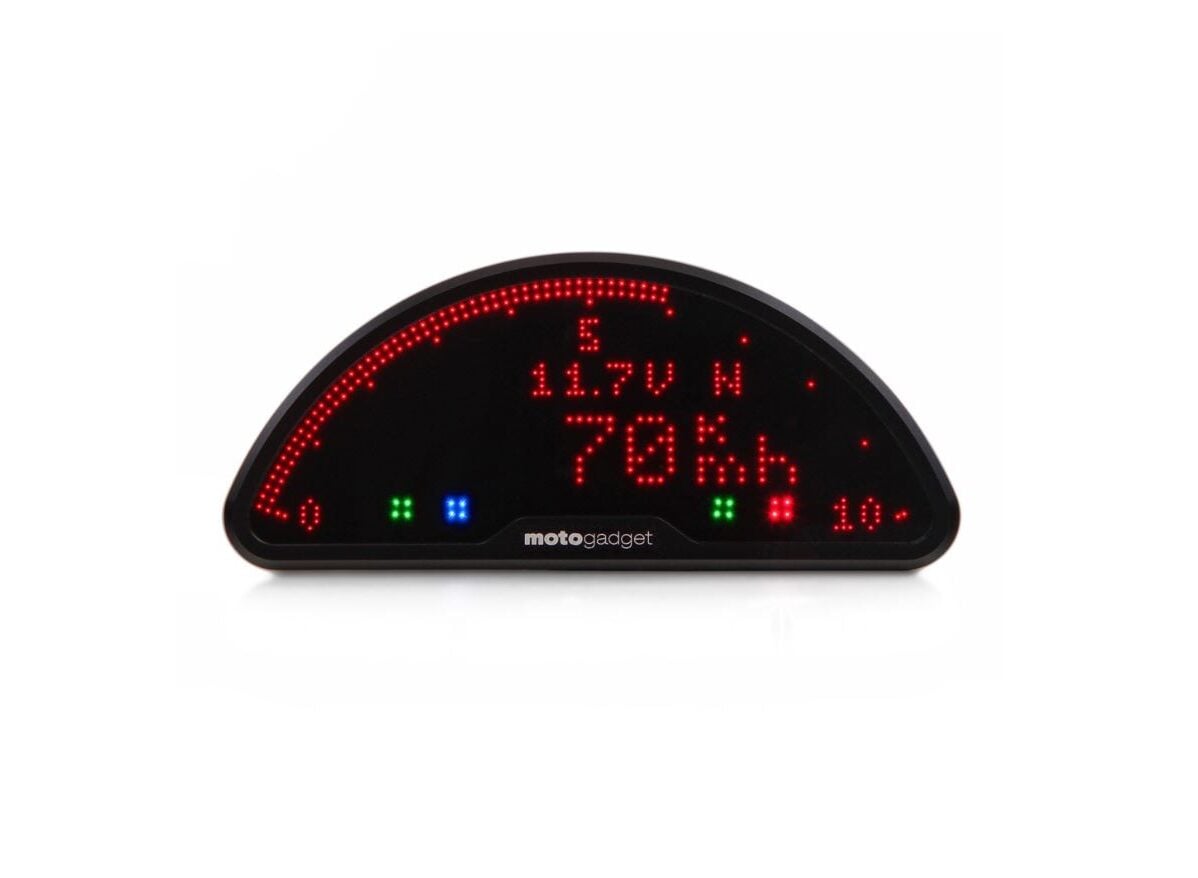

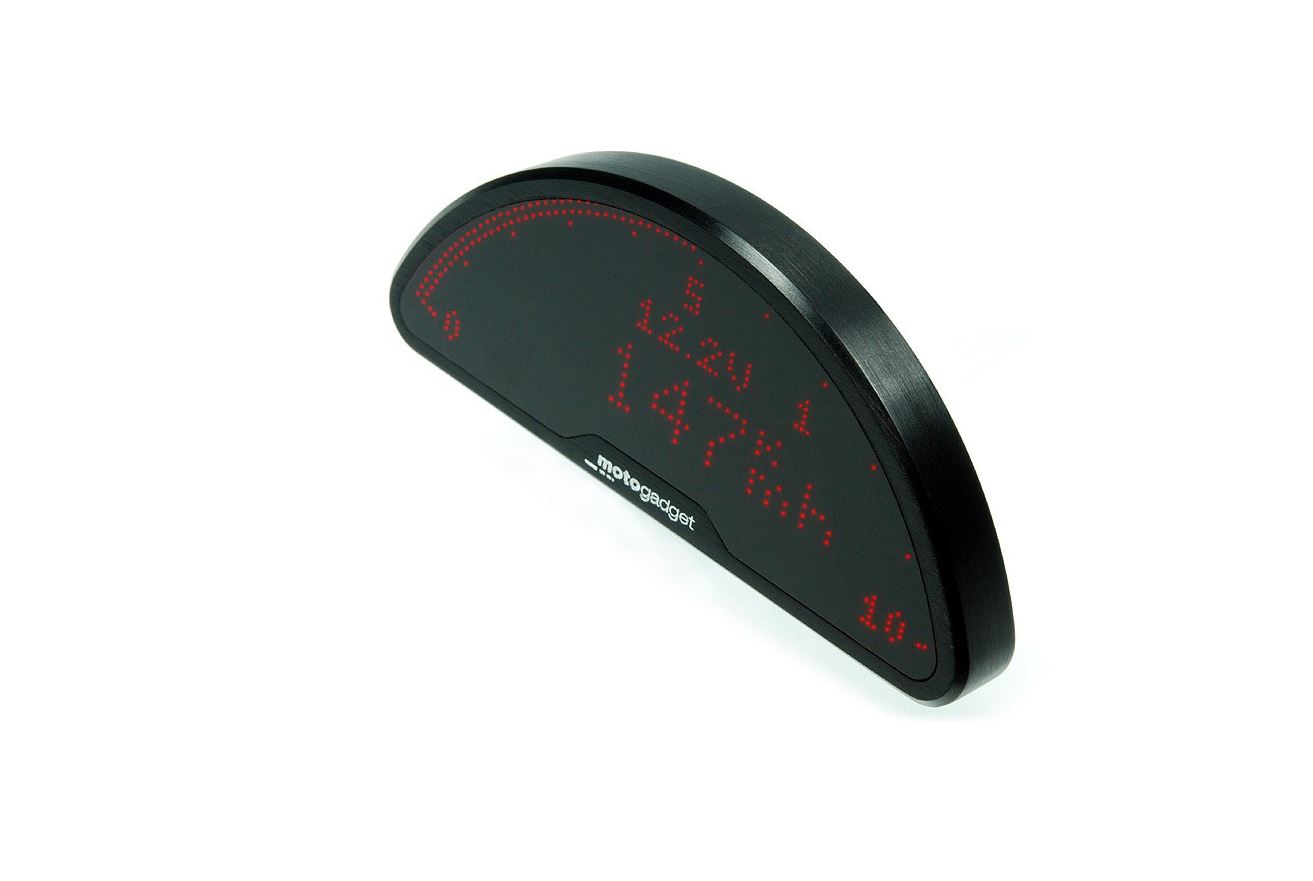

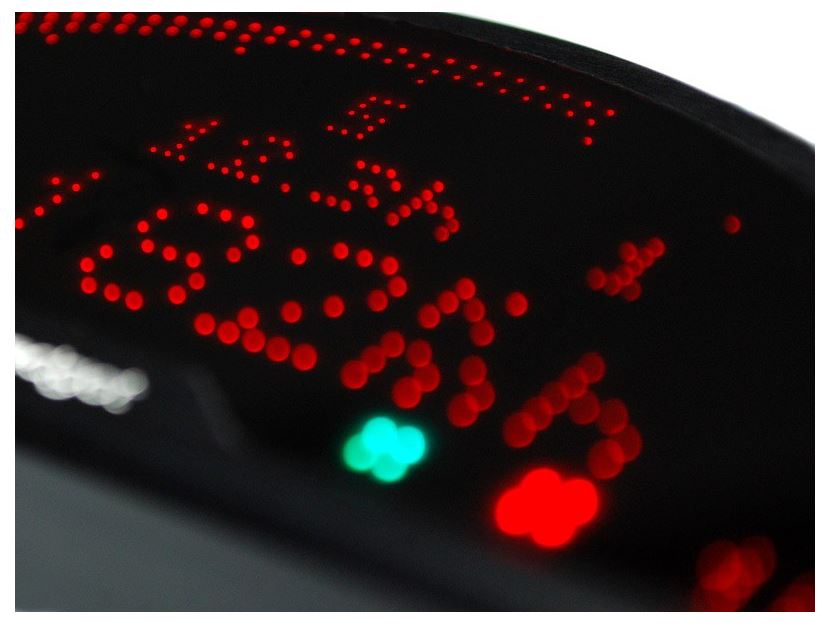

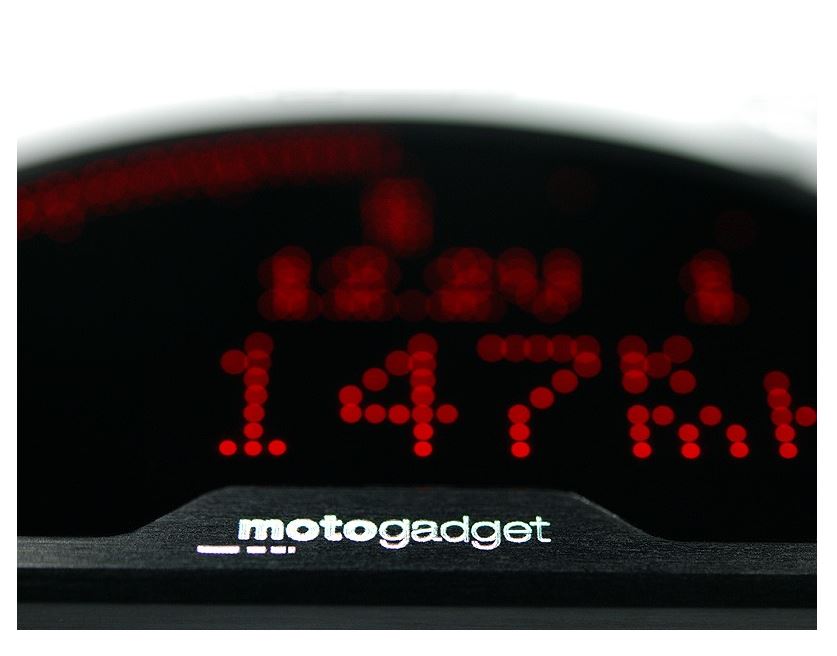

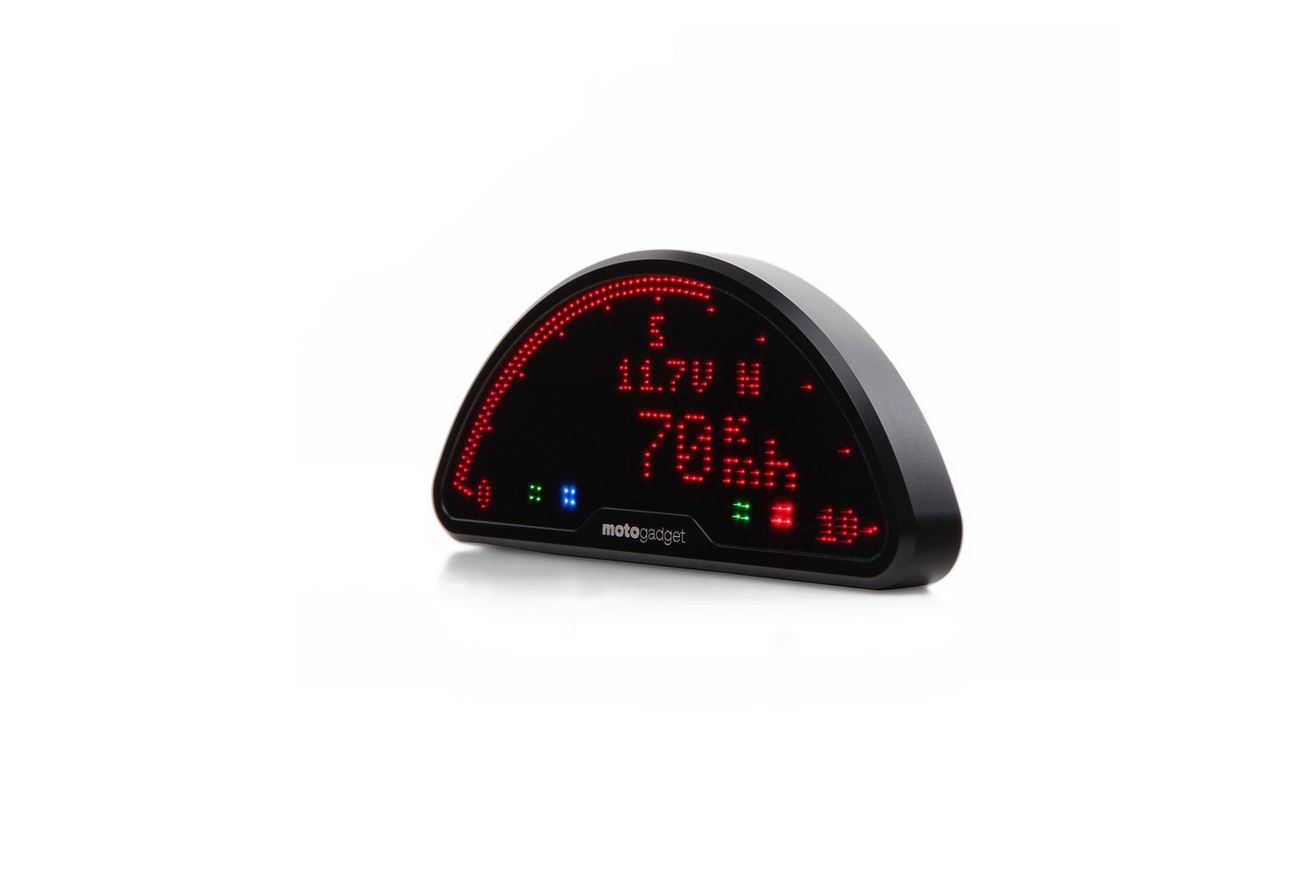

Cutting edge technology enables us to create ultra-slim casing designs. 734 LEDs – governed by a 16-bit RISC processor – create an almost rimless, self-illuminating display matrix. It provides optimal readability even under conditions of direct sunlight. Automatic brightness control is a matter of course.

The rev-counter is displayed fully scalable via the analogue LED band with drag indicator function. Main and secondary display are user configurable. Another display section shows the gear currently engaged.

Four indicator lights are pre-installed and can be used for far more input signals via the Breakout Boxes. The motoscope pro is equipped with a fully-fledged CAN-bus interface and thus ready for many of tomorrow’s developments like for example the plug ‘n ride Breakout-Box Triumph (please see tab ‘Triumph’ above).

The dashboard communicates over a proprietary digital one-wire bus (m-Bus) with additional Breakout Boxes to easily expand the application spectrum. This makes the dashboard highly versatile and makes application to a wide range of vehicles and tasks possible.

- +
SKU: MSCOPPRO-1 Categories: ,

Features

Please note: Touch sensor not included anymore.

Feature Measuring range
Rev counter (LED bargraph)
0 – 6, 8, 10, 12, 14, 16, 18 krpm (adjustable)
Speedometer
0 – 350 km/h or mph
Trip meter A
bis 999.9 km or mi
Trip meter B
bis 999.9 km or mi
Total mileage (adjustable) bis 250000 km or mi
Operating hours/Service 0 – 9999.5 h
Clock 23:59 h/min
Timekeeping 0 – 99:59:59 h/min/s
RPM count (on LCD) 0 – 20000 rpm
Adjustable RPM warning (gear shift flash) 0 – 20000 rpm
On-board voltage 9 – 18 V
Low voltage warning Warning if below ca. 11V
Timekeeping 0 – 100 km/h or 0 – 60 mph 0.00 – 30.59 sec.
Actual accelleration +/- 0.00 – 1.50 G
Average speed 0 – 350 km/h or mph
Max. speed 0 – 350 km/h or mph
Max. RPM 0 – 20000 rpm
Max. positive acceleration +1.50 G
Max. negative acceleration – 1.50 G
Gear display N, gear 1 – 6
Green control LED (w/ breakoutbox A/B) Neutral (N)
Green control LED (w/ breakoutbox A/B) Turn indicator left/right
blue control LED (w/ breakoutbox A/B) High beam
Red control LED (w/ breakoutbox A/B) Miscellanious warning funktions
Fuel/Reserve (w/ breakoutbox A/B) 0 – 100% w/ low warning
Air temperature* (w/ breakoutbox B) -20 – 80 °C / -4 – 176 °F w/ high/low warning
Water temperature* (w/ breakoutbox B) 40 – 120 °C / 104 – 248 °F w/ high/low warning
Oil temperature* (w/ breakoutbox B) 40 – 150 °C / 104 – 302 °F w/ high/low warning
Oil pressure* (w/ breakoutbox B) 0 – 8 bar / 0 – 116 psi w/ high/low warning

Product Fitment

Length, Height, Depth: 109 mm/ 47 mm/ 11 mm
Weight w/ cable: ca. 100 g
Mounting: 2 x M3 threaded hole
Power consumption during operation: max. 200 mA (load dependent)
Power consumption in standby: 0.4 mA
Operating voltage: 9 V – 15 V
Operating temperature: -20°… +80°C

Mounting the Motoscope Pro

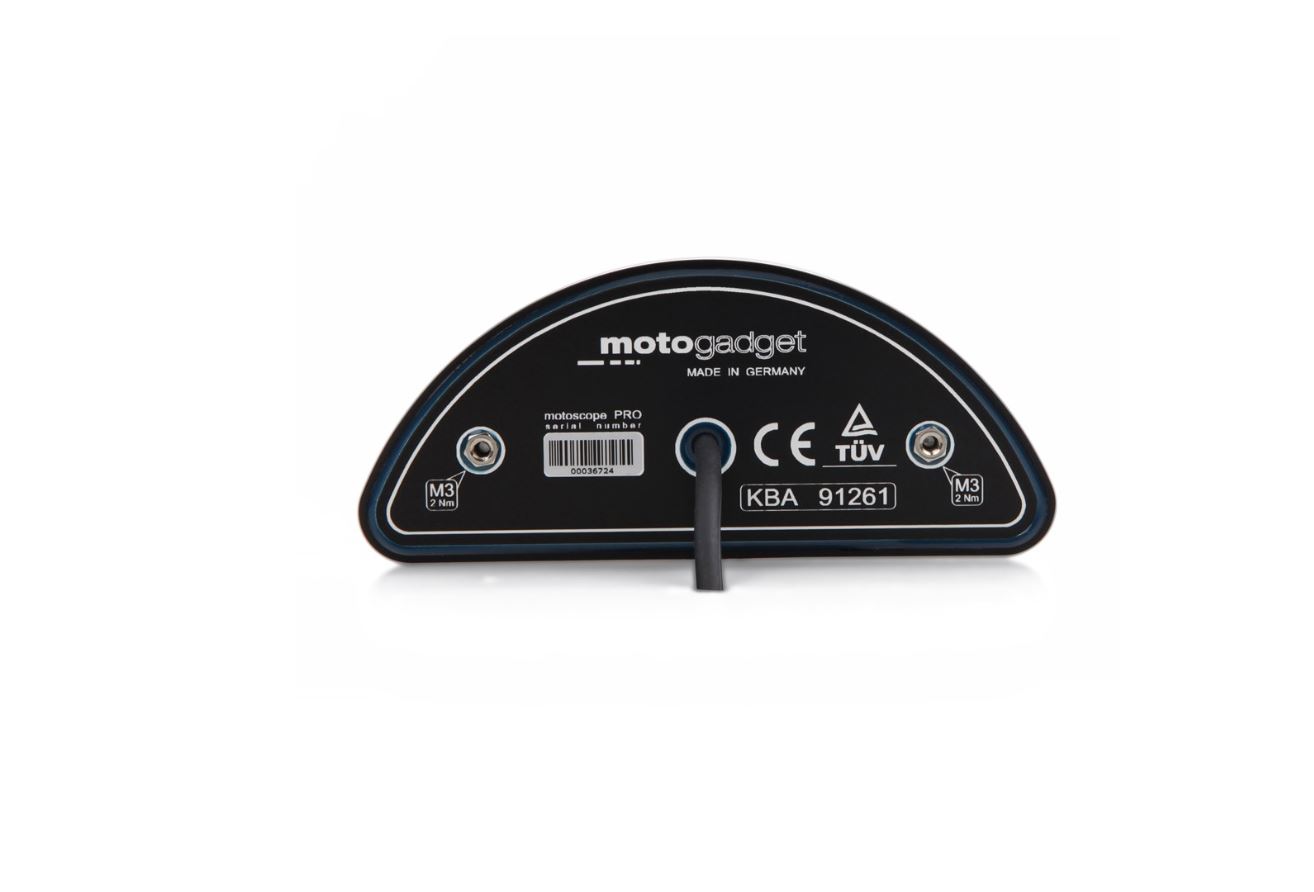

The billet aluminium casing is cnc-machined and is easily mounted by two backside threaded holes. The instrument is equipped with an ABE and does not have to be registered.

Breakout Box

Please order the Breakout Box to connect indicator light signals (see Breakout Box Std.) or to connect digital bus-systems (Triumph, H-D) additionally. For BMW R9T a Breakout Box is not necessary. [Click Here to View Breakout Box B]

What comes in the box?

Parts delivered: motoscope pro with ca. 55 cm connector cable, speedometer sensor M5 x 0,5 fine-pitch thread (stainless steel, IP67) with ca. 150 cm connector cable, 2 magnets, 10 cable end connectors, in-line fuse, 2 stainless steel screws, detailed installation and operating instructions.

Additional Information & Disclaimer

Disclaimer

Modifying vehicles is a specialist task and requires the knowledge and experience of competent individuals to be conducted safely, particularly where vehicle performance may change from the original specification. There is an element of risk associated with any modification and it is up to you to ensure these risks are minimised and taken into account. Further, some components may not be suitable for installation as a result rules and regulations. It is your responsibility to ensure that all legal requirements are met, relevant to your country and/or jurisdiction. JAX Garage takes no responsibility for any damage or injury as a result of any component or vehicle modification.

Weight 0.15 kg
Dimensions 10 × 10 × 8 cm
Brand

Motogadget

Fitment

Universal
