HONDA CB750 F Top Triple Replacement Clamp – 6 Series

$255.00 AUD

or 4 fortnightly payments of $63.75 with Afterpay $200 Min Spend. AU Customers Only. More info

JAX Garage designed replacement top triple clamp / yoke for 1979-83 Honda CB750 F (commonly referred to as super-sports). The custom top triple clamp provides a sleek new design with clean lines and improved rigidity when compared to the original. With any custom bike the cockpit is likely to be the first thing to see from the riders position. Why not improve the look to match the custom feel and style of the rest of the ride? For additional convenience we’ve added two helicoiled mounting holes underneath the clamp to allow for speedo bracket to be attached.

The custom triple clamp is manufactured using the highest quality 6061 T6 Aluminium. The OEM Offsets (182x50mm) are kept the same. Be sure to check your size fork diameter. These come in two variants 35mm and 37mm fork diameters.

Refer to the specifications below for additional information regarding fitment, application and compatibility.

Clear
- +
SKU: TTCCB750001/2 Categories: ,

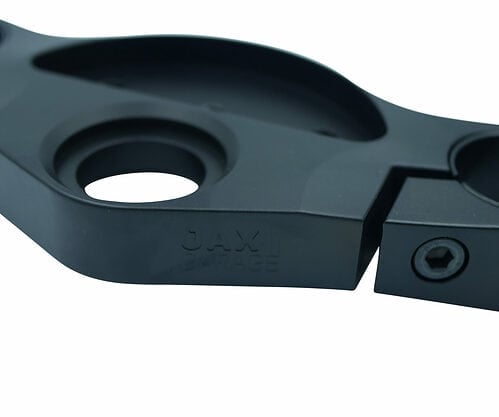

Helicoiled auxiliary attachment holes

All JAX Garage components are designed not only to look and feel good but also be durable and practical. That’s why we’ve included helicoiled auxiliary mounting holes underneath the top triple clamp. Perfect for fitting aftermarket speedometers of your choice.

HONDA CB750 F Top Triple Replacement Clamp - 6 Series 7

What comes in the box?

– 1x JAX Garage CB 750 F SS replacement top triple
– 2x top triple clamp stainless steel bolts

HONDA CB750 F Top Triple Replacement Clamp - 6 Series 8

Based in Melbourne, Australia

We’re experts when it comes to the local rules and regulations for custom motorcycles.

In-house fabrication, Design and Prototyping

Engineering expertise, tooling and capacity for in-house fabrication, design and prototyping. All of the parts sold and fitted to our custom motorcycles are validated right here in Melbourne.

Life-time technical support on all custom motorcycles and parts

Have any additional questions on installing our parts? Moving state or Country? You’re always a part of the JAX Garage Family regardless of where you are. If we can help, we will!

Money-back guarantee on all custom parts

We’re sure you’ll love our products. If not, return it within 14 days. No questions asked! Period.

What comes in the box?



Product Fitment

Disclaimer

Modifying vehicles is a specialist task and requires the knowledge and experience of competent individuals to be conducted safely, particularly where vehicle performance may change from the original specification. There is an element of risk associated with any modification and it is up to you to ensure these risks are minimised and taken into account. Further, some components may not be suitable for installation as a result rules and regulations. It is your responsibility to ensure that all legal requirements are met, relevant to your country and/or jurisdiction. JAX Garage takes no responsibility for any damage or injury as a result of any component or vehicle modification.

Additional information

Weight 0.85 kg
Dimensions 42 × 12.5 × 6.5 cm
Additional Information

This kit comes with the following:
– 1x JAX Garage CB 750 F SS replacement top triple
– 2x top triple clamp stainless steel bolts

Compatible with Original 1979-83 Honda CB750 F SS front-end.

Please note: To ensure correct fitment we always ask that you double check year and model of your bike. The fork offset for 35mm variants should be 182mm from centre to centre. The stem to fork offset centres should be 50mm. The fork offset for 37mm variants should be 190mm from centre to centre. The stem to fork offset centres should be 50mm.

Disclaimer:
Modifying vehicles is a specialist task and requires the knowledge and experience of competent individuals to be conducted safely, particularly where vehicle performance may change from the original specification. There is an element of risk associated with any modification and it is up to you to ensure these risks are minimised and taken into account. Further, some components may not be suitable for installation as a result rules and regulations. It is your responsibility to ensure that all legal requirements are met, relevant to your country and/or jurisdiction. JAX Garage takes no responsibility for any damage or injury as a result of any component or vehicle modification.

Size

'79-'81 (35mm), '81-'83 (37mm)

Brand

Jax Garage

Fitment

Honda CB750 F
