Sale!

Motogadget Motoscope Classic Speedo

Name: Motogadget Motoscope Classic Speedo
Brand: Motogadget
SKU: M-SCOPE-CLASSIC-SP-1
Availability: InStock

Original price was: $730.00.Current price is: $657.00. AUD

In Stock

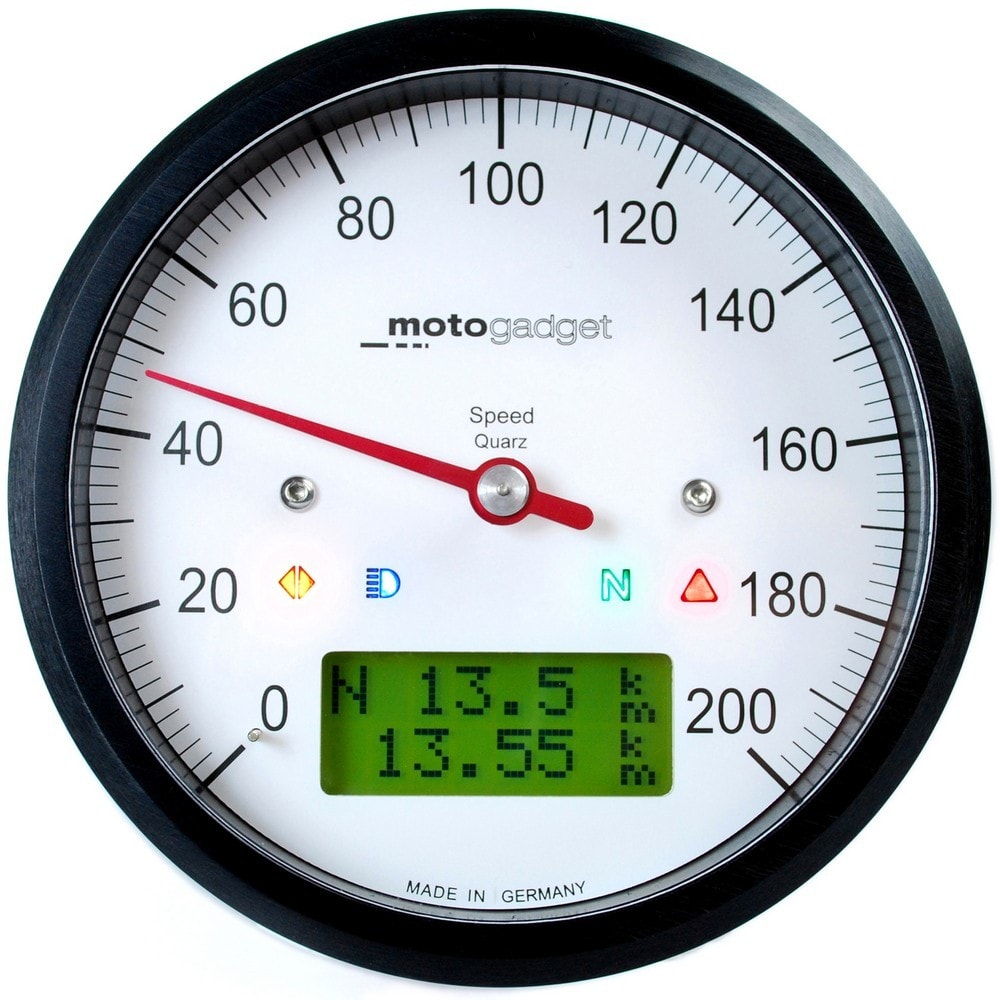

The motoscope classic speedo from motogadget is an analogue speedometer with many additional digital features in a classic round casing. A white dial and a red indicator driven by a precision stepper motor comprise the analogue rev counter. A LC display and four indicator LEDs indicate the additional features accurately and reliably.

Surface Bezel

Clear

SKU: M-SCOPE-CLASSIC-SP-1 Categories: Gauges & Instruments, Motogadget Brand: Motogadget

Features

Versions

This compact instrument creates new possibilities in vehicle design. The design goes well with every type of mod or original machine – regardless if real classic, youngtimer, custom or sports bike. The motoscope classic is equally suited for sports or kit cars.

High end materials, assembly by hand and our scrupulous quality control provide the highest possible quality in functionality and looks.

Product Fitment

Universal Analogue instrument gauge suitable for any custom motorcycle project.

Mounting diameter	80 mm
Total diameter (bezel)	85 mm
Depth without cable fitting	34 mm
Weight	approx. 230 g
Mount	3 x M4 threaded hole
Power consumption, operating	approx. 200 mA (load dependent)
Power consumption, standby	0 mA
Operating voltage	9 V – 18 V
Operating temperature	-20°… +80°C
Speedometer (analogue, indicator)	0 – 200 km/h or mi/h, on top on LCD
Trip meter	999 km or mi max.
Total distance (adjustable)	250000 km or mi max.
Journey time display	0 – 99:99:99 h/min/s
Rev counter (on LCD)	0 – 20000 rpm
rpm threshold, adjustable (int. LED and ext. gear shift flash)	0 – 20000 rpm
On-board voltage display	9 V – 18 V
NEW! Low voltage warning	LED blinks if on-board voltage drops below approx. 11V – replacement for battery charge status light
Air temperature* (optional instead of water temp.)	-20 – 80 °C / -4 – 176 °F with high-/low warning
Water temperature* (optional instead of air temp.)	40 – 120 °C / 104 – 248 °F with high-/low warning
Oil temperature*	40 – 160 °C / 104 – 320 °F with high-/low warning
Oil pressure*	0 – 8 bar / 0 – 116 psi with high-/low warning
Timekeeping 0 – 100 km/h or 0 – 60 mi/h	0.0 – 99.9 s
Current acceleration	(-20.0) – 20.0 m/s2
Average speed	0 – 350 km/h or mi/h
Max. speed	0 – 350 km/h or mi/h
Max. rpm	0 – 20.000 rpm
Max. positive acceleration	0 – 20.0 m/s2
Max. negative acceleration	0 – (-20.0) m/s2
Gear indicator	N, gear 1 – 6
Green indicator LED	Neutral (N)
Yellow indicator LED	Turn signal left, right
Blue indicator LED	High beam
Red indicator LED	Different warning functions external (e. g. oil pressure switch), internal (rpm, temperature, pressure, voltage)
Output external gear shift flash light	Switched power 1.4 A max.

What comes in the box?

Instrument with approx. 55 cm connector cable
Complete wiring
Fuse
Speedometer sensor M5 x 0,5 fine-pitch thread with 150 cm connector cable
2 x magnet
Mini push-button
3x M4 screw (stainless steel)
Detailed installation and operating instructions

Please note that temperature and pressure sensors have to be ordered separately (refer to ‘Accessories’).

Additional Information & Disclaimer

Disclaimer

Modifying vehicles is a specialist task and requires the knowledge and experience of competent individuals to be conducted safely, particularly where vehicle performance may change from the original specification. There is an element of risk associated with any modification and it is up to you to ensure these risks are minimised and taken into account. Further, some components may not be suitable for installation as a result rules and regulations. It is your responsibility to ensure that all legal requirements are met, relevant to your country and/or jurisdiction. JAX Garage takes no responsibility for any damage or injury as a result of any component or vehicle modification.
