Motogadget m.switch mini - What comes with it?
- 1 x m.switch mini
- 2 x retaining stainless steel caphead bolts.
or 4 fortnightly payments of $49.75 with $200 Min Spend. AU Customers Only. More info

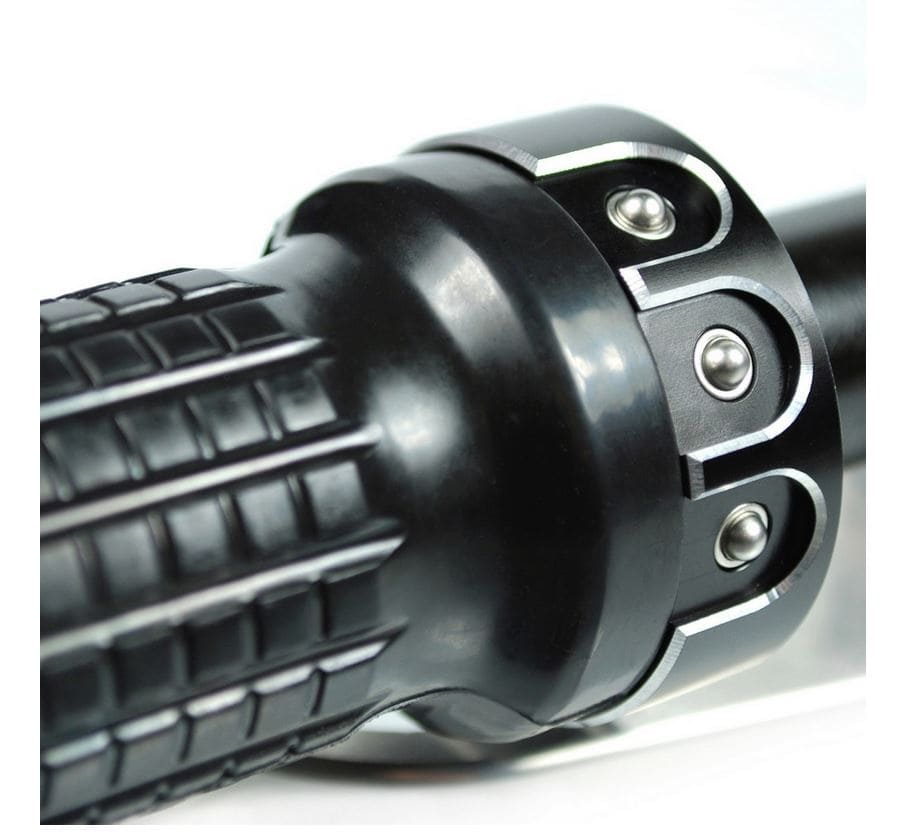

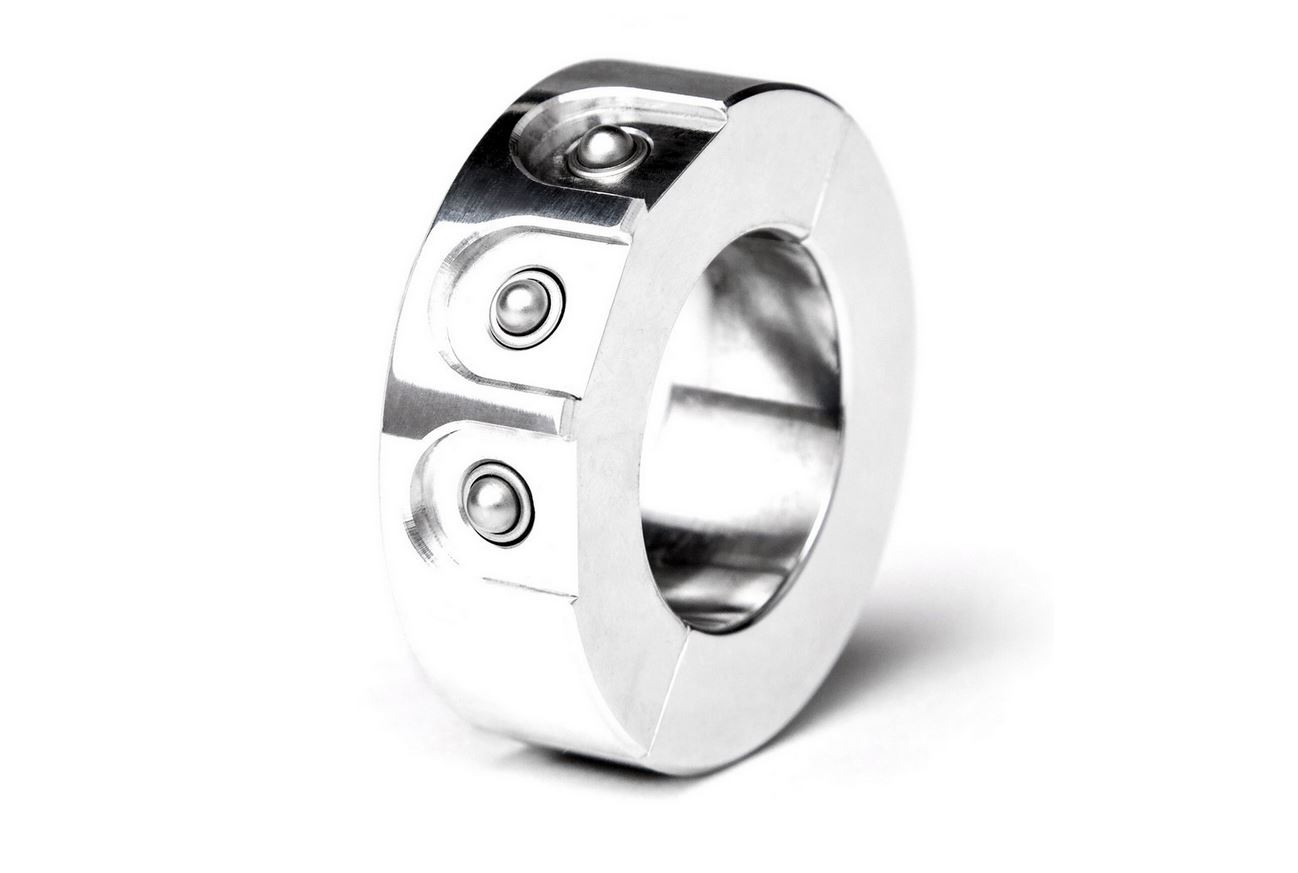

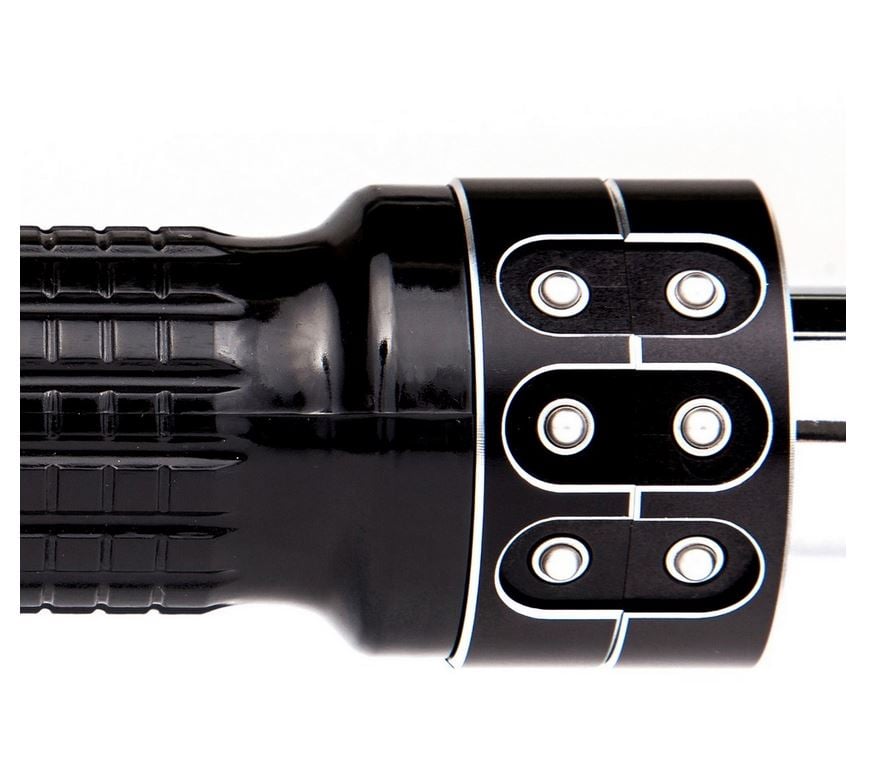

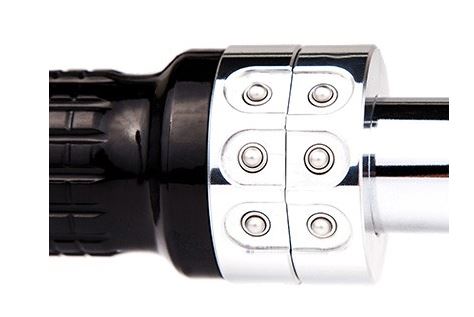

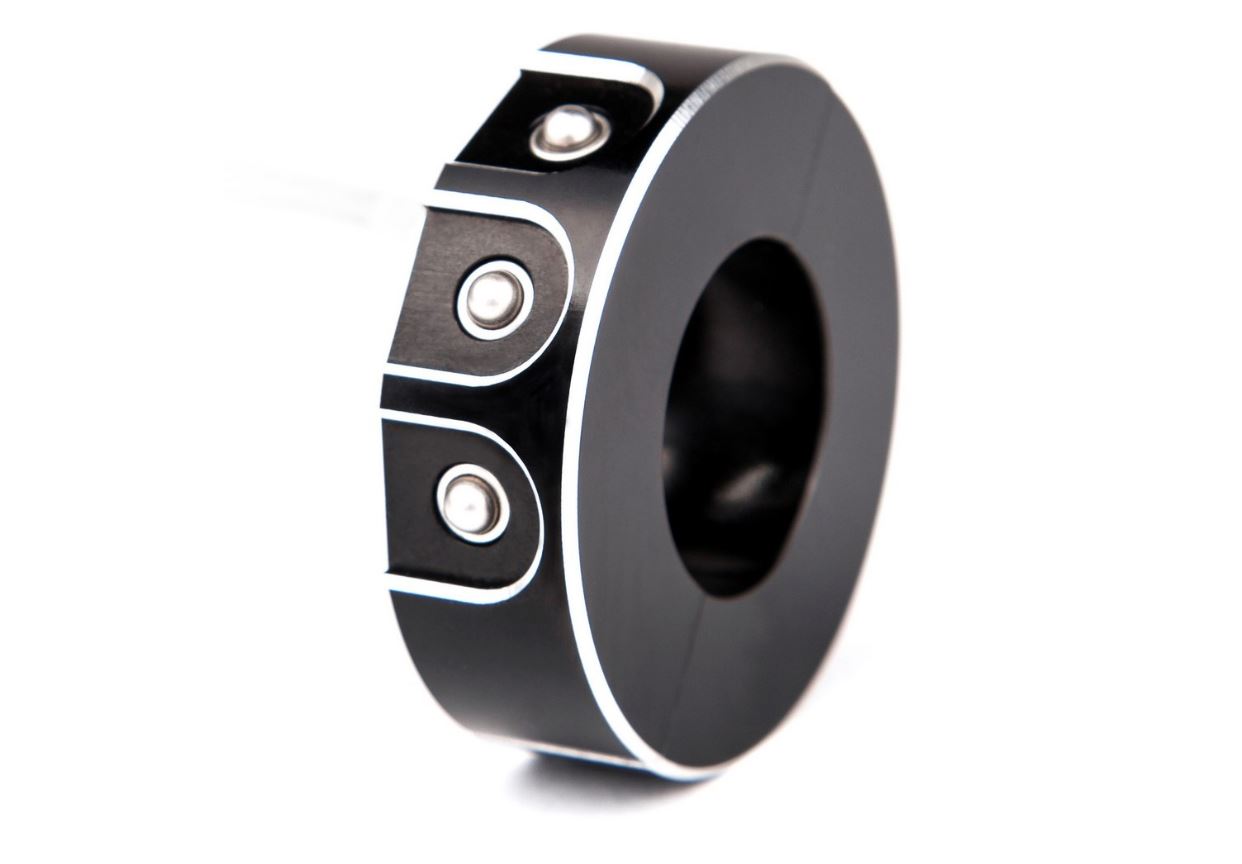

The mo.switch mini is a high quality universal push-button control for handle bars with 1 in. or 22 mm (7/8 in.) tube diameter in a plain and elegant design.
These finely CNC machined hand controls in combination with an electronic push-button control unit (NOT INCLUDED IN KIT) are used to operate all electrical features, e.g. lights, turn signal, E-Starter, horn, etc.
The casing is made from CNC machined billet aluminium and available in mirror polished or black finished surface respectively. Two flush built-in M5 stainless steel mounting screws ensure secure and stable clamping of the push-button control to all handle bars.
The push-buttons are of high quality, very robust design and vibration- and spraywater-proof (IP65).
The mo.switch mini is of course compatible to all common push-button controls, e.g. the mo.unit blue/basic.
Specifications and features
Inner diameter 22 mm or 1 Inch
Outer diameter 45 mm
Width 14 mm
Length of cable 200 mm
Modifying vehicles is a specialist task and requires the knowledge and experience of competent individuals to be conducted safely, particularly where vehicle performance may change from the original specification. There is an element of risk associated with any modification and it is up to you to ensure these risks are minimised and taken into account. Further, some components may not be suitable for installation as a result rules and regulations. It is your responsibility to ensure that all legal requirements are met, relevant to your country and/or jurisdiction. JAX Garage takes no responsibility for any damage or injury as a result of any component or vehicle modification.
|Dimensions||10 × 10 × 8 cm|
Black Anodized, Polished
|Handle Bar Diameter||
25.4mm (1 inch), 22mm (7/8 inch)
