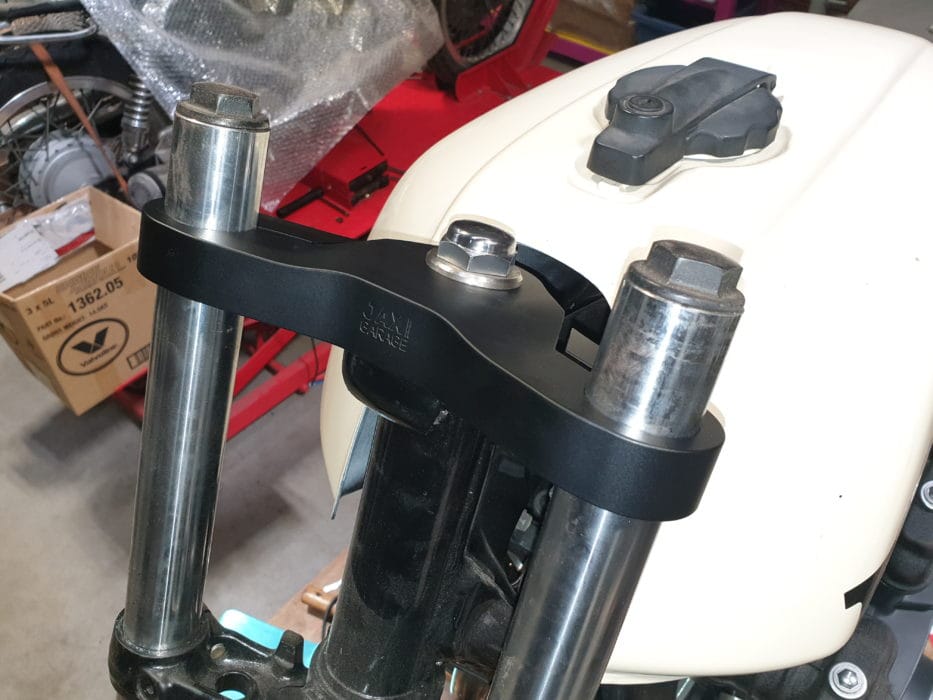

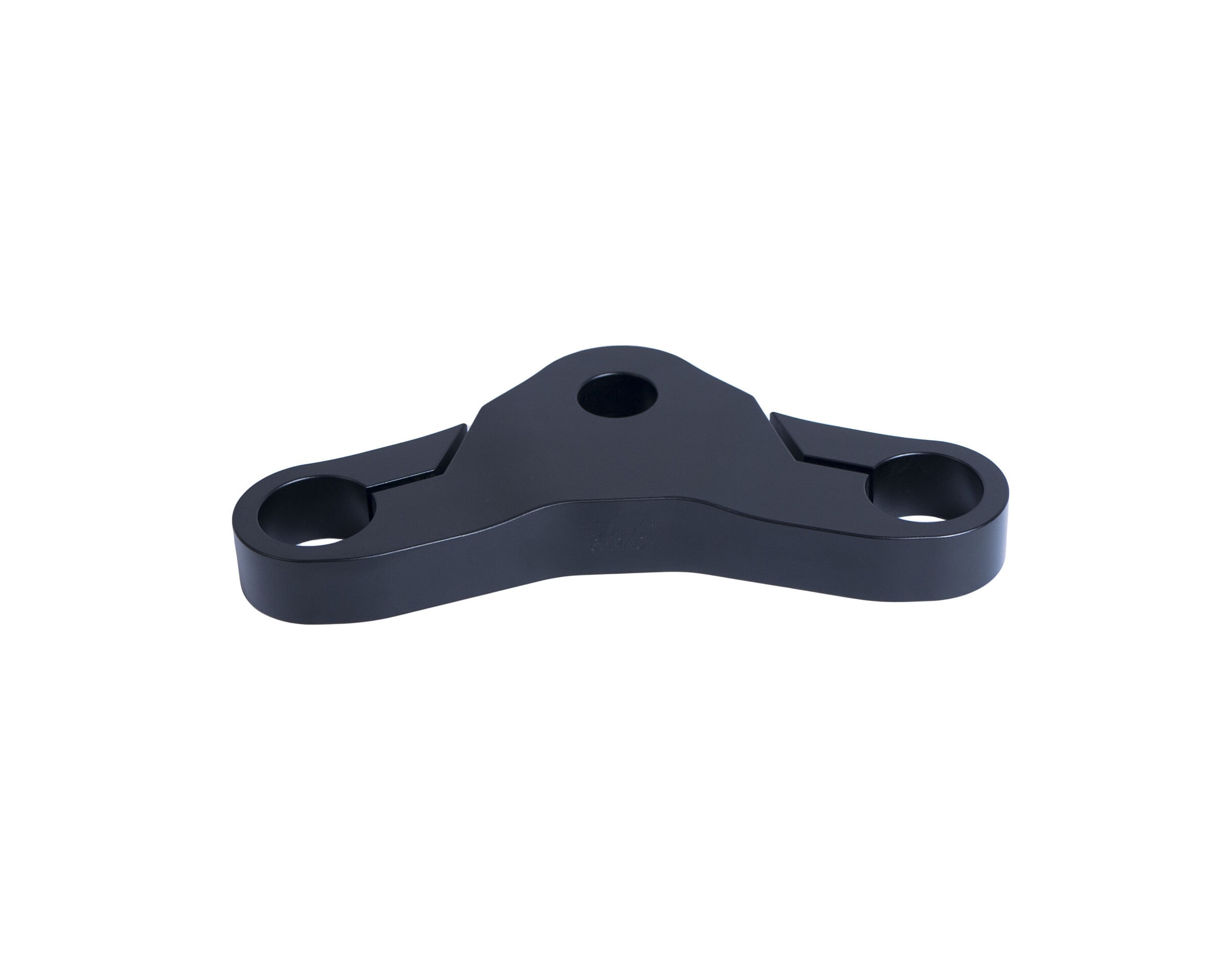

HONDA CB750 F Top Triple Replacement Clamp (35mm forks) – 6 Series

$255.00 AUD

JAX Garage designed replacement top triple clamp / yoke for 1979-82 Honda CB750 F (commonly referred to as super-sports). The triple clamp provides a sleek new design with clean lines and improved rigidity when compared to the original. With any custom bike the cockpit is likely to be the first thing to see from the riders position. Why not improve the look to match the custom feel and style of the rest of the ride. For additional convenience we’ve added two helicoiled mounting holes underneath the clamp to allow for speedo bracket to be attached.

The custom triple clamp is manufactured using the highest quality 6061 T6 Aluminium. The OEM Offsets (182x50mm) are kept the same. This top triple will suit all 35mm forks, which come standard with the original build.

Refer to the specifications below for additional information regarding fitment, application and compatibility.

- +
SKU: TTCCB750001 Category:

Description

Helicoiled auxiliary attachment holes

All JAX Garage components are designed not only to look and feel good but also be durable and practical. That’s why we’ve included helicoiled auxiliary mounting holes underneath the top triple clamp. Perfect for fitting aftermarket speedometers of your choice.

HONDA CB750 F Top Triple Replacement Clamp (35mm forks) - 6 Series 6

What comes in the box?

– 1x JAX Garage CB 750 F SS replacement top triple
– 2x top triple clamp stainless steel bolts

HONDA CB750 F Top Triple Replacement Clamp (35mm forks) - 6 Series 7

Additional information

Weight 0.85 kg
Dimensions 42 × 12.5 × 6.5 cm
Additional Information

This kit comes with the following:
– 1x JAX Garage CB 750 F SS replacement top triple
– 2x top triple clamp stainless steel bolts

Compatible with Original 1979-82 Honda CB750 F SS front-end.

Please note: To ensure correct fitment we always ask that you double check year and model of your bike. The fork offset should be 182mm from centre to centre. The stem to fork offset centres should be 50mm.

Disclaimer:
Modifying vehicles is a specialist task and requires the knowledge and experience of competent individuals to be conducted safely, particularly where vehicle performance may change from the original specification. There is an element of risk associated with any modification and it is up to you to ensure these risks are minimised and taken into account. Further, some components may not be suitable for installation as a result rules and regulations. It is your responsibility to ensure that all legal requirements are met, relevant to your country and/or jurisdiction. JAX Garage takes no responsibility for any damage or injury as a result of any component or vehicle modification.
