Honda CX500 / CX650 YSS Custom Monoshock Conversion Kit

$755.00$840.00 AUD

or 4 fortnightly payments from $188.75 with Afterpay $200 Min Spend. AU Customers Only. More info

JAX Garage has been given the opportunity to provide the CX files monoshock conversion kit, developed by Suspension-Store, official distributor and custom shop for YSS suspension. Suitable for Honda CX/GL 400, 500 and 650 range of bikes.

The baseplate as well as the topmounting must be welded to the rear swingarm and main frame. We recommend that your leave the welding up to a professional.

See what comes in the kit by scrolling further down.

The following colour options are available:

1. Aluminium Custom Series

2. Full Black Custom Series

3. Gold Custom Series

Clear
- +
SKU: TCXF-MZ-366-280-TRL Categories: ,

Complete Adjustment

Completely adjustment setup including;

1. Preload adjustment,

2. Dampening adjustment,

3. Length adjustment up to +/- 5mm.

Honda CX500 / CX650 YSS Custom Monoshock Conversion Kit 9
Honda CX500 / CX650 YSS Custom Monoshock Conversion Kit 10

Installation - made easy!

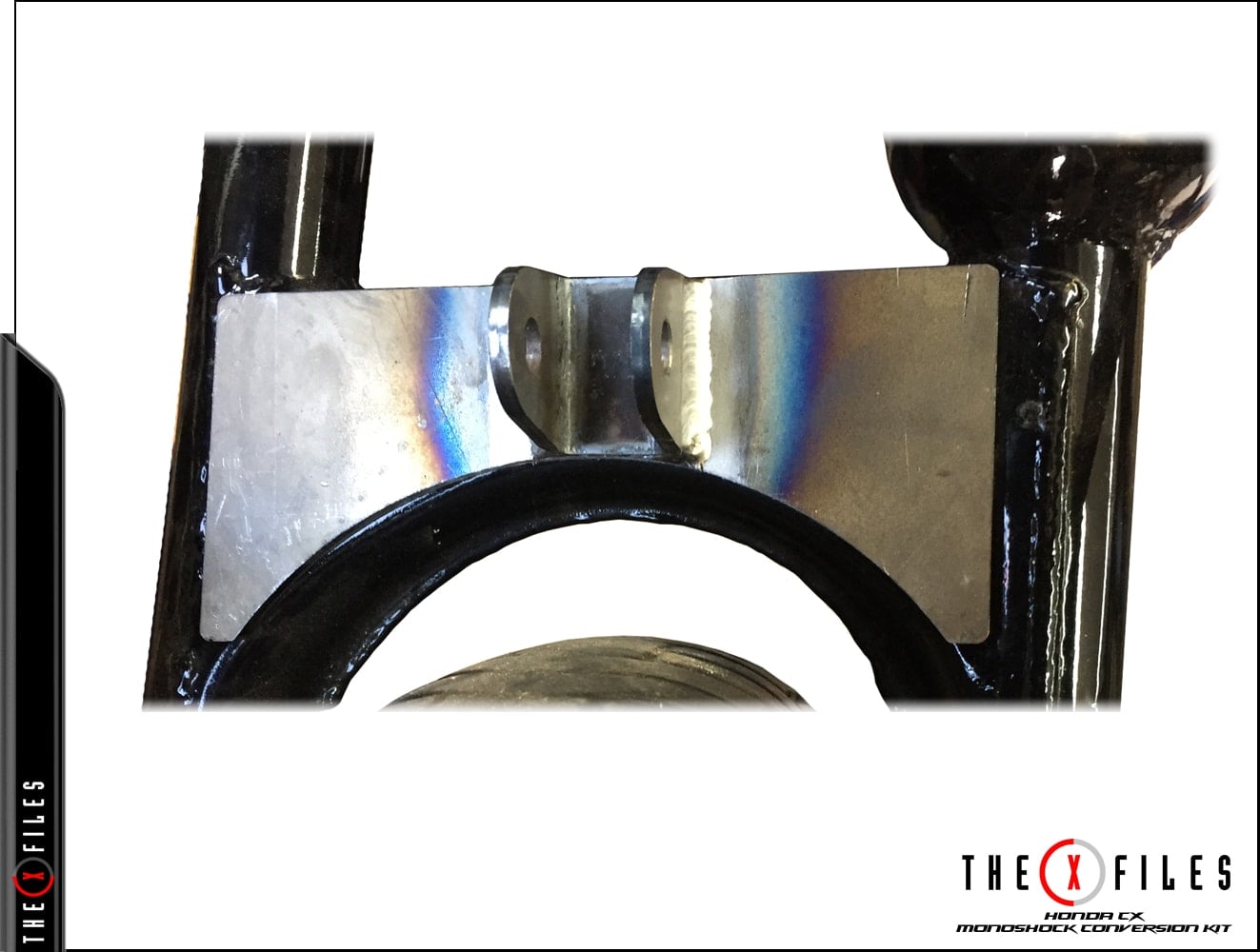

The placing of the baseplate shows itself, it has the exact shape of the location it must be welded to.


By varying the height placement of the top mounting, you can choose you own ride-height. We recommend you to stay close to the standard geometry.

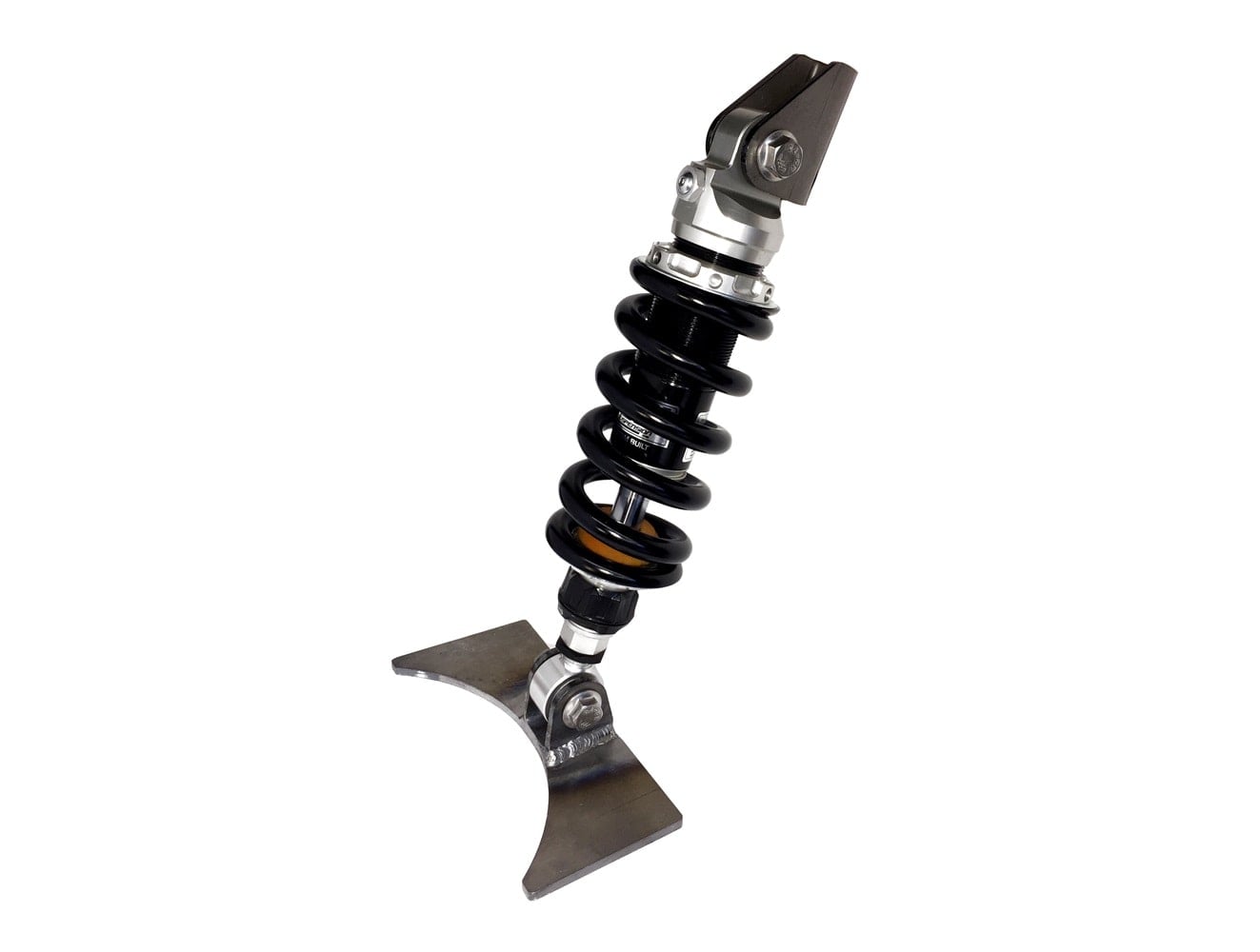

Honda CX Series Monoshock Conversion Kit - What comes with it?

– Baseplate > 4mm thick steel, lasered to shape. It places directly on top of the rear swing arm. It has a 4mm thick steel bracket TIG welded on it, inner width 22mm, boltholes 10mm.
– Top mounting > 4mm thick steel bracket, inner width 22mm, boltholes 10mm.
– 2 high strength stainless steel bolts M10 with flange.
– 2 high strength stainless steel nuts M10 with flange.
– 1 shock absorber > specificly developed for this purpose. When the kit is mounted like it should, only then the shock has the perfect hydraulic settings and springrate.

Honda CX500 / CX650 YSS Custom Monoshock Conversion Kit 11
Honda CX500 / CX650 YSS Custom Monoshock Conversion Kit 12

What comes in the box?



Product Fitment

Disclaimer

Modifying vehicles is a specialist task and requires the knowledge and experience of competent individuals to be conducted safely, particularly where vehicle performance may change from the original specification. There is an element of risk associated with any modification and it is up to you to ensure these risks are minimised and taken into account. Further, some components may not be suitable for installation as a result rules and regulations. It is your responsibility to ensure that all legal requirements are met, relevant to your country and/or jurisdiction. JAX Garage takes no responsibility for any damage or injury as a result of any component or vehicle modification.

Additional information

Weight 2.5 kg
Dimensions 45 × 30 × 15 cm
Additional Information

– Length of the shock center-eye to center eye = 280mm (the shock has a +5/-5MM length adjustment)
– Mounting points top and bottom 10x22mm

We don't take any responsibility for the technical state of your bike and your rear swingarm.
We don't take any responsibility for the work done on the bike.
We only take responsibility for the kit itself and the shock absorber, these parts are 100% safe.
Please be aware that, although the conversion is often done, that the standard CX swingarm is not designed to just put a shock on top of it, so we must recommend you to reinforce it.

Disclaimer:
Modifying vehicles is a specialist task and requires the knowledge and experience of competent individuals to be conducted safely, particularly where vehicle performance may change from the original specification. There is an element of risk associated with any modification and it is up to you to ensure these risks are minimised and taken into account. Further, some components may not be suitable for installation as a result rules and regulations. It is your responsibility to ensure that all legal requirements are met, relevant to your country and/or jurisdiction. JAX Garage takes no responsibility for any damage or injury as a result of any component or vehicle modification.

Colour Option

Aluminium Custom, Black Custom, Gold Custom

Brand

YSS Shocks

Fitment

Honda CX500, Honda CX650
