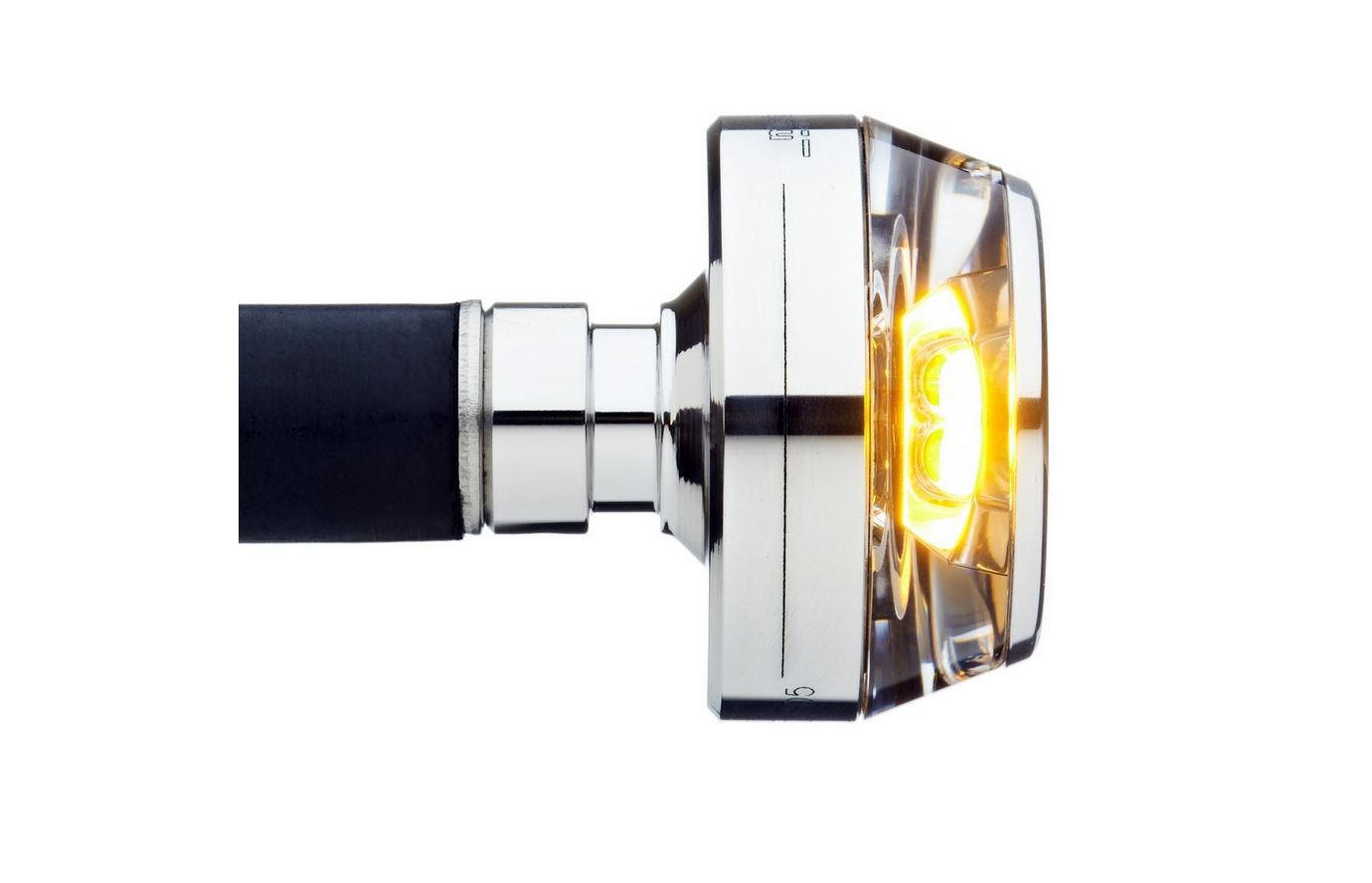

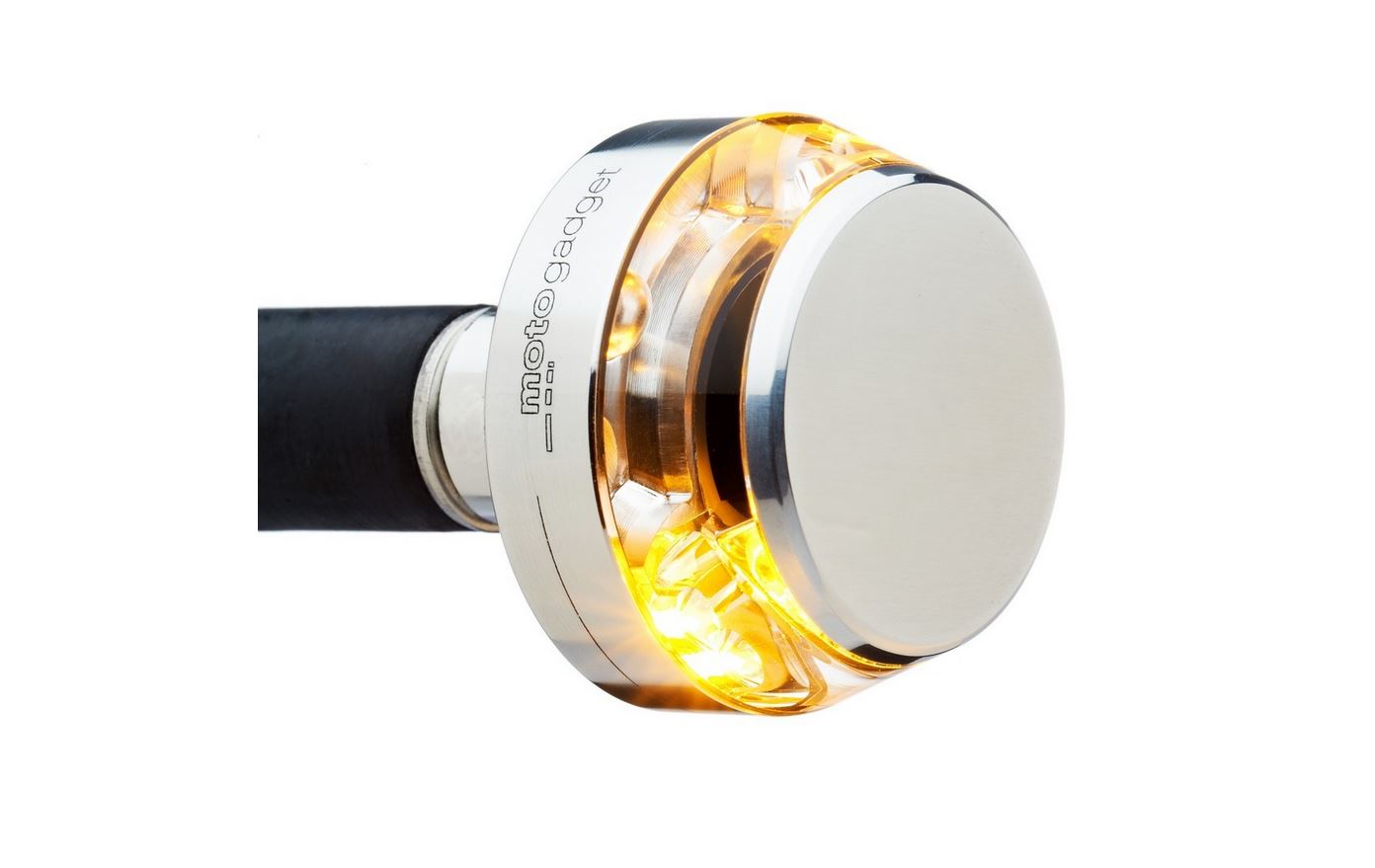

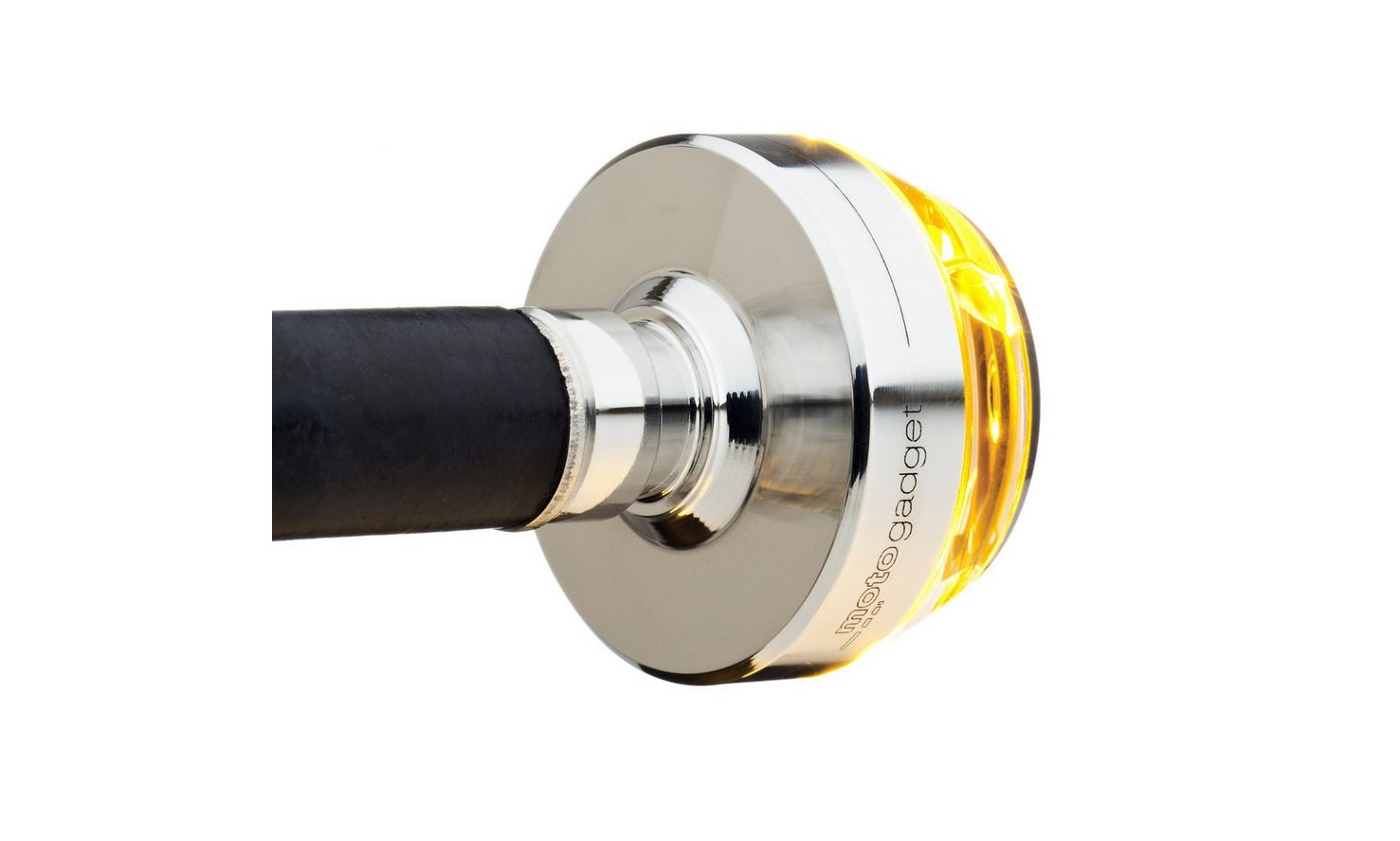

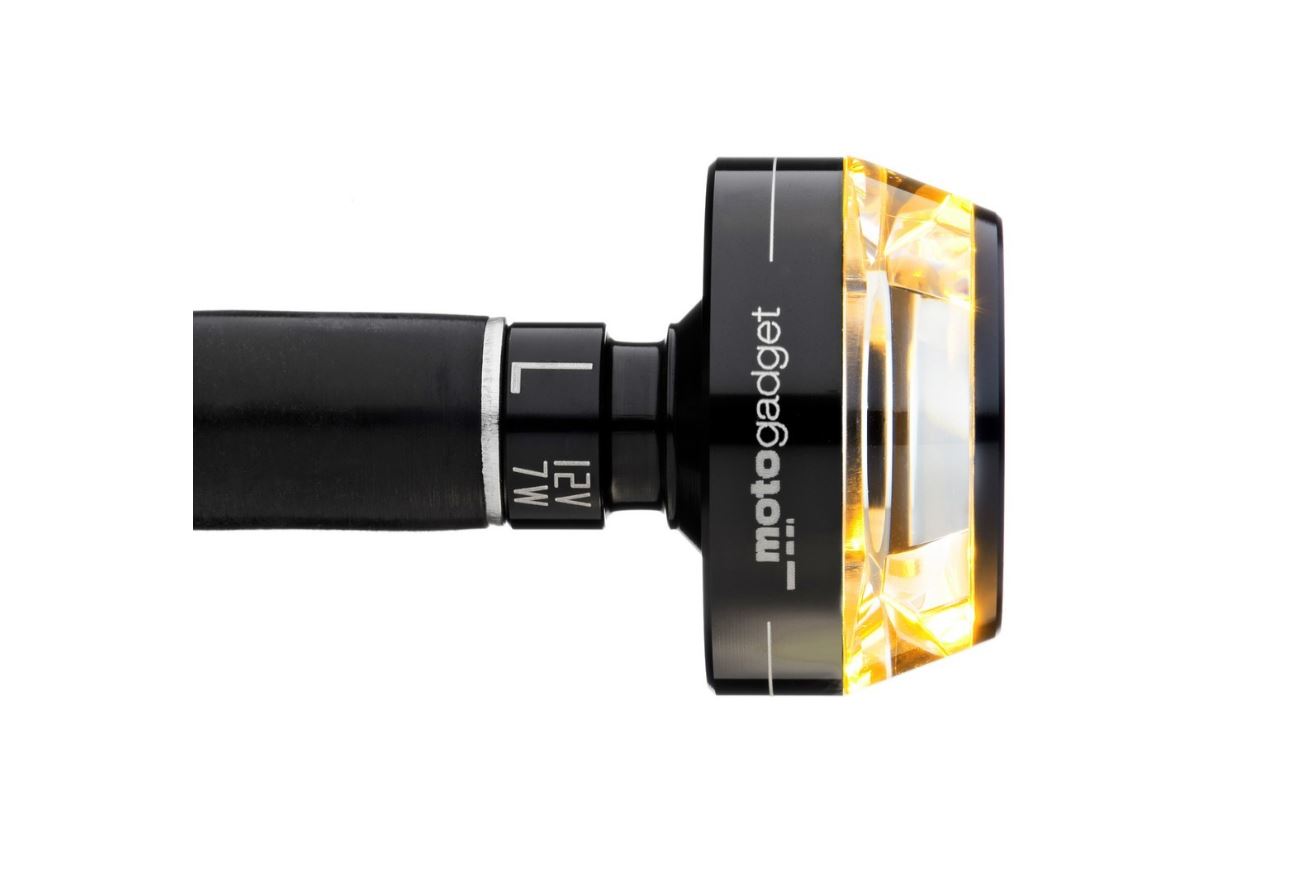

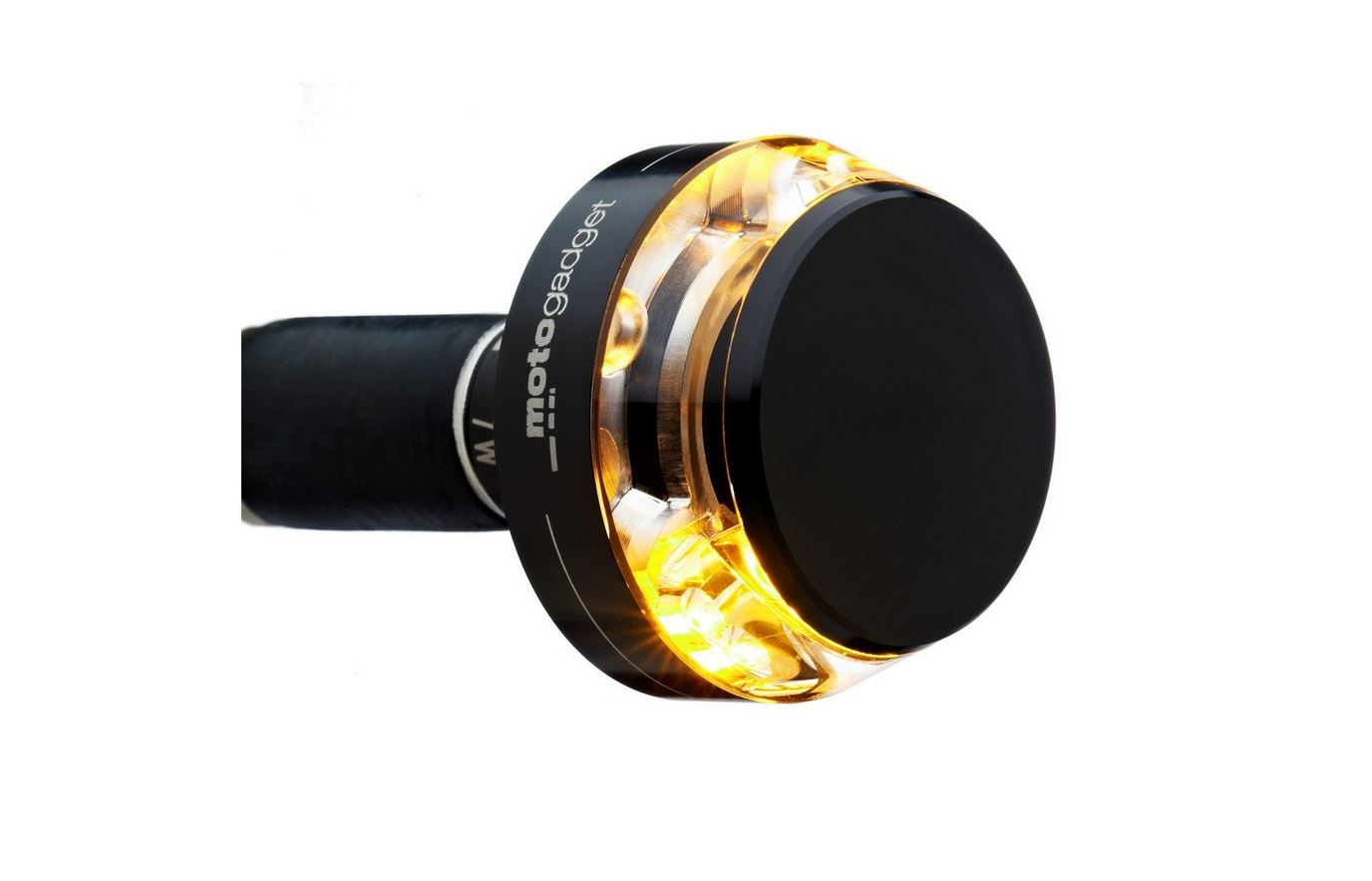

Motogadget m.blaze disc bar-end indicator

$150.00 AUD

or 4 fortnightly payments of $37.50 with Afterpay $200 Min Spend. AU Customers Only. More info

mo.blaze disc by motogadget – a turn signal for handlebar end installation in a trend-setting design.

The mo.blaze disc is the latest generation of turn signal lights. The characteristic feature of the LED turn signal is the transparent light-emitting disc on a compact aluminium base providing the harmonious finish of the handlebar end.

This is already the third generation of our turn signals using the motogadget TranzLight-Technology® (TLT, patent pending). This progressive approach to development is not limited to the miniaturization of turn signal casings. Furthermore, it creates new lighting concepts directly through a crystal-like plastic body. Only the precision of CAD calculations and state-of-the-art manufacturing processes allow this new design and its performance opportunities.

The luminous flux required for the TranzLight technology is generated by the intensiLED® procedure developed by motogadget. It consists of three important pillars:

  • Specifically selected, high output LED with maximum efficiency and 7W total output and a service life of more than 50,000 hours.
  • IC controlled constant power source with 330 kHz pulses.
  • Special collimator optics, that precisely bundles the emission light from the LED into the plastic body.

The subtle aluminium casing is used for the secure mount of the plastic body only and includes the electronic control system and high-end LEDs. Traditionally, the casing is machined using CNC technology, available with an anodized black or mirror polish surface and furnished with an elegant finish of laser inscriptions.

The turn signal for handlebar end installation has a very low construction height and, due to the transparent disc, the mo.blaze shows up with a very neutral and subtle look. That’s why the mo.blaze is the perfect match to many styles and all types of motorbikes.

Like any other conventional LED turn signal, the turn signal kit can be operated with load resistors or any of our load independent flasher relays (mo.flash, mo.wave, mo.stop, mo.relay+).

The mo.blaze disc has E mark and front turn signal approval.

Always make sure to order a complete set consisting of the left and right side turn signal assembly

Clear
- +
SKU: MDISC-1 Categories: ,

Advantages


  • Completely unique, discrete design and functionality
  • Barely recognizable on handlebar when OFF
  • Extremely bright light to front side, well recognizable light output to rear side
  • State-of-the-art, high performance LED technology called IntensiLED
  • Electronic voltage conditioning and secure protection circuits
  • No need for turn signal indicator lights
  • Quite harmonious finish for handlebar end – especially when equipped with mo.grip or other billet grips.

Motogadget m.blaze disc - What comes with it?

  • 1 x m.blaze disc indicator
  • Delivered with rubber clamping parts for steel and aluminium handlebars (22 mm and 1 in.) with 14 mm to 21 mm I.D.

What comes in the box?



Product Fitment

Disclaimer

Modifying vehicles is a specialist task and requires the knowledge and experience of competent individuals to be conducted safely, particularly where vehicle performance may change from the original specification. There is an element of risk associated with any modification and it is up to you to ensure these risks are minimised and taken into account. Further, some components may not be suitable for installation as a result rules and regulations. It is your responsibility to ensure that all legal requirements are met, relevant to your country and/or jurisdiction. JAX Garage takes no responsibility for any damage or injury as a result of any component or vehicle modification.

Additional information

Weight 0.20 kg
Dimensions 10 × 10 × 8 cm
Additional Information

Specifications and features
Diameter 35 mm
Overall length 68 mm
Partial length outside handlebar 20 mm
Partial length inside handlebar 48 mm
Cable length ca. 100 cm
Weight approx. 40 g
Mounting Delivered with rubber clamping parts for steel and aluminium handlebars (22 mm and 1 in.) with 14 mm to 21 mm I.D.
Power consumption approx. 7 Watt

Disclaimer:
Modifying vehicles is a specialist task and requires the knowledge and experience of competent individuals to be conducted safely, particularly where vehicle performance may change from the original specification. There is an element of risk associated with any modification and it is up to you to ensure these risks are minimised and taken into account. Further, some components may not be suitable for installation as a result rules and regulations. It is your responsibility to ensure that all legal requirements are met, relevant to your country and/or jurisdiction. JAX Garage takes no responsibility for any damage or injury as a result of any component or vehicle modification.

Surface

Black Anodized, Polished

Installation side

Left, Right

Brand

Motogadget

Fitment

Universal
