HIGHSIDER CNC aluminium headlight holder set EXTEND

$215.00 AUD

Low Stock
Ready for dispatch, limited availability

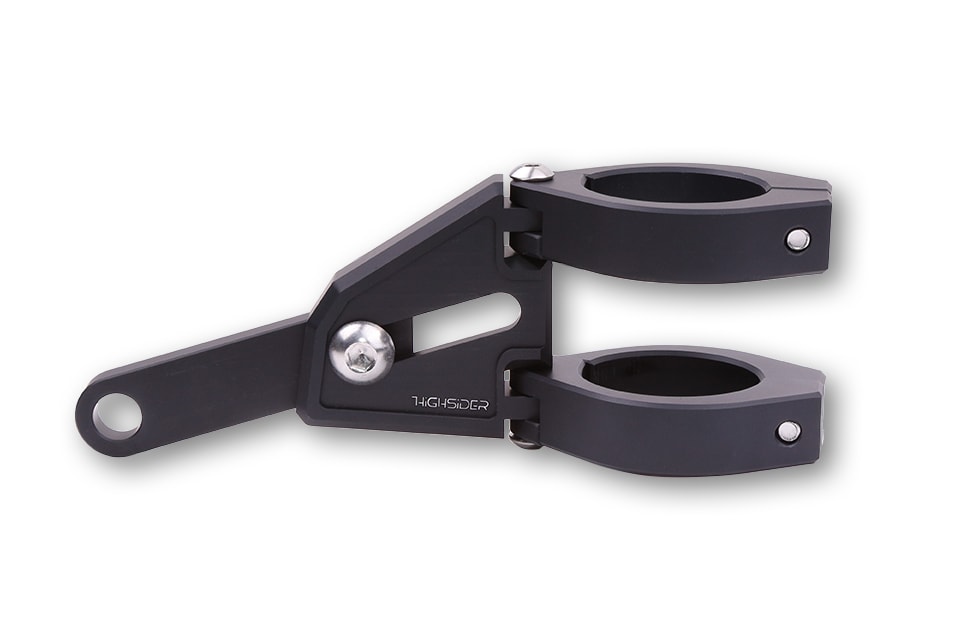

HIGHSIDER CNC aluminium lamp holder set EXTEND, black.

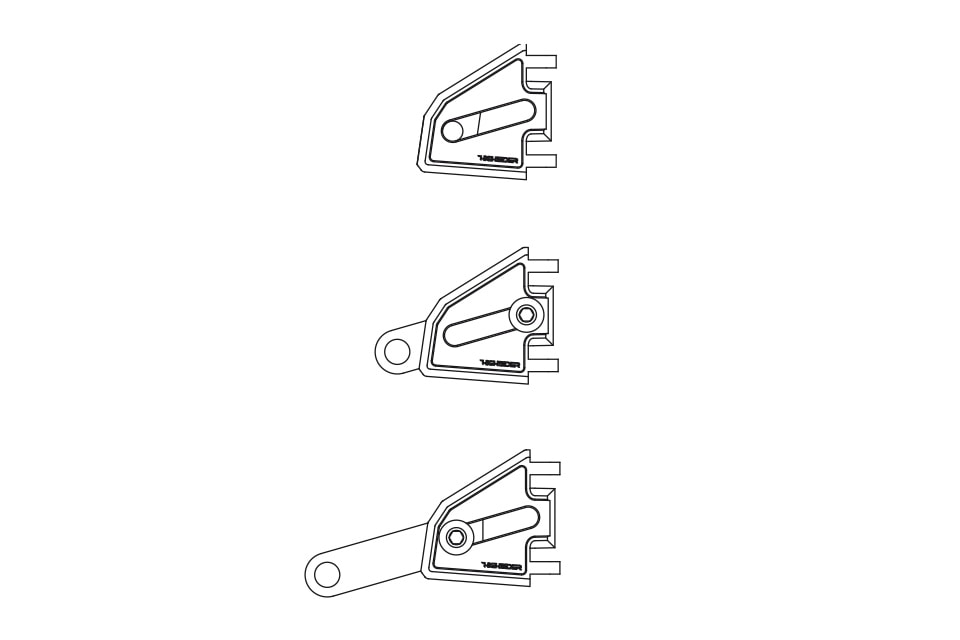

The perfect set for your conversion project. Precisely processed lamp holders of the extra class, elaborately CNC-milled and anodized. The blackAluminium lamp holder set contains 4 fork tube clamps and 2 holders and reduction strips each. Several adjustment options make it easier to align the headlight to your Chopper, Cruiseror Nakedbike simplified. The EXTEND lamp holders are adjustable in length, so the distance for the headlight can be adjusted from approx. 35 mm to 90 mm. Attached to the fork,the headlamp can be mounted close to the bike. The holders are attached to the clamps in such a way that they can be adjusted to the width of the headlight. With the enclosed insertion stripsthe diameter can be reduced.

These are suitable for fork diameters ranging from 47mm to 54mm.

- +
SKU: HS-220-810418 Categories: , , ,

Product Fitment

Dimensions:
Thickness: 12 mm
Length Holder Min: 35 mm (Measured from the middle of the hole to the headlight mount)
LengthBracket Max: 90 mm (Measured from the centre of the hole to the headlamp mount)
Height: 55 mm
Hole diameter: 10 mm











What comes in the box?

Scope of delivery: 1 set
– 4 fork tube clamps
– 2 brackets
-Reducing strips





Additional Information & Disclaimer

Disclaimer

Modifying vehicles is a specialist task and requires the knowledge and experience of competent individuals to be conducted safely, particularly where vehicle performance may change from the original specification. There is an element of risk associated with any modification and it is up to you to ensure these risks are minimised and taken into account. Further, some components may not be suitable for installation as a result rules and regulations. It is your responsibility to ensure that all legal requirements are met, relevant to your country and/or jurisdiction. JAX Garage takes no responsibility for any damage or injury as a result of any component or vehicle modification.

Weight 0.5 kg
Dimensions 20 × 5 × 10 cm
Brand

Highsider

Fitment

Universal
